What is the workflow of a cartoning machine?

Publish Time: Author: Site Editor Visit: 68

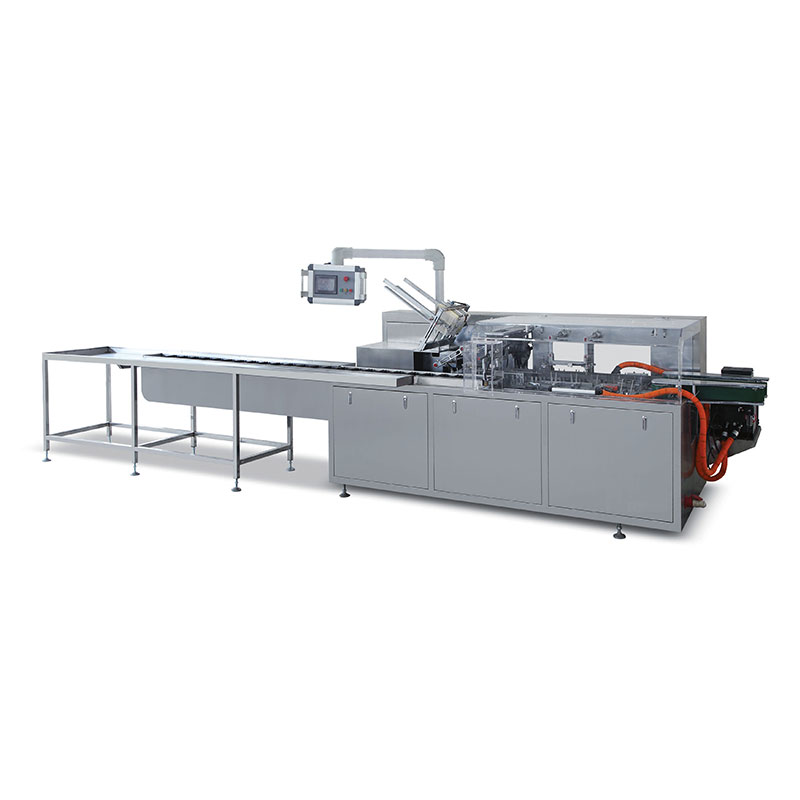

Cartoning machine is a machine used to automatically pack products into boxes or containers. It is known for its high efficiency and accuracy and is widely used in food, beverage, cosmetics, medicine and other industries. The working principle of cartoning machine is to take the products from the conveyor belt through a series of automated steps, put them into boxes one by one, and finally seal the boxes and stack them neatly at the output end to complete the cartoning task.

Generally speaking, the work flow of cartoning machine includes the following main steps:

1. Conveyor belt:

The products are conveyed to the working area of ​​the cartoning machine at prescribed intervals through the conveyor belt. The speed and spacing of the conveyor belt can be adjusted according to the size and cartoning requirements of different products.



2. Box removal:

The cartoning machine automatically removes the prepared boxes from the storage location of the boxes through a suction cup device or other mechanical means. The boxes are usually card sleeve boxes made of paper or plastic, which can be pre-folded on the packaging line. The boxes also need to be checked when taking them out to ensure that there are no quality problems such as leakage and breakage of the boxes.



3. Open the box:

After removing the box, the cartoning machine will open the vertical facade of the box by suction cups, scraping edges, etc., so that the product can be placed in the box.



4. Put in the product:

After the cartoning machine receives the product from the conveyor belt, it will put the product into the box one by one according to the pre-set rules. There are many ways to put the product in the box, and the product can be put into the box by devices such as manipulators and guide rails. Usually, the cartoning machine will position and align the product to ensure that the product is placed accurately.



5. Sealing the box:

After the product is placed in the box, the cartoning machine will seal the box by mechanical devices such as folding edges and bottom sealing. There are also many ways to seal the box, such as using glue or heat sealing.



6. Arrange the box:

After sealing the box, the cartoning machine will further arrange the box to make it neatly arranged. The arrangement method can be adjusted according to different cartoning requirements, usually by stacking, pushing, etc.



7. Output:

Finally, the sorted boxes will be moved to the next process or shipping area through a conveyor belt or other output device.

It should be noted that the workflow of the cartoning machine may vary depending on the model and equipment, but the above steps are the more common workflow of the cartoning machine. In addition, the cartoning machine is usually equipped with control systems such as sensors and PLC to ensure stable and reliable operation, and can adjust the speed, size and other parameters of the cartoning as needed.

The cartoning machine realizes the automatic cartoning of products, greatly improving production efficiency and quality, reducing labor and labor costs. At the same time, the workflow of the automatic cartoning machine can also avoid secondary contamination of products by manual operation, ensuring the safety and hygiene of products. With the development of science and technology, the cartoning machine is also constantly innovating, making the cartoning process more intelligent and efficient, providing strong support for enterprises to achieve automated production.
