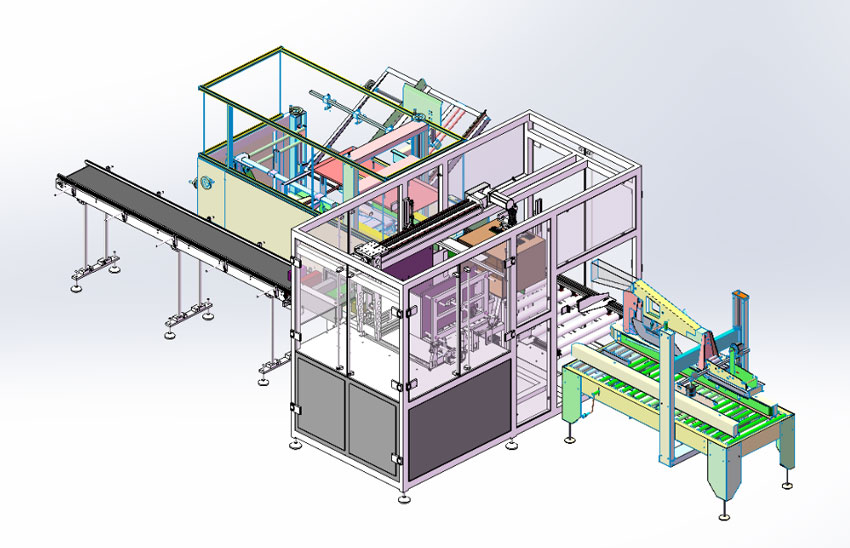

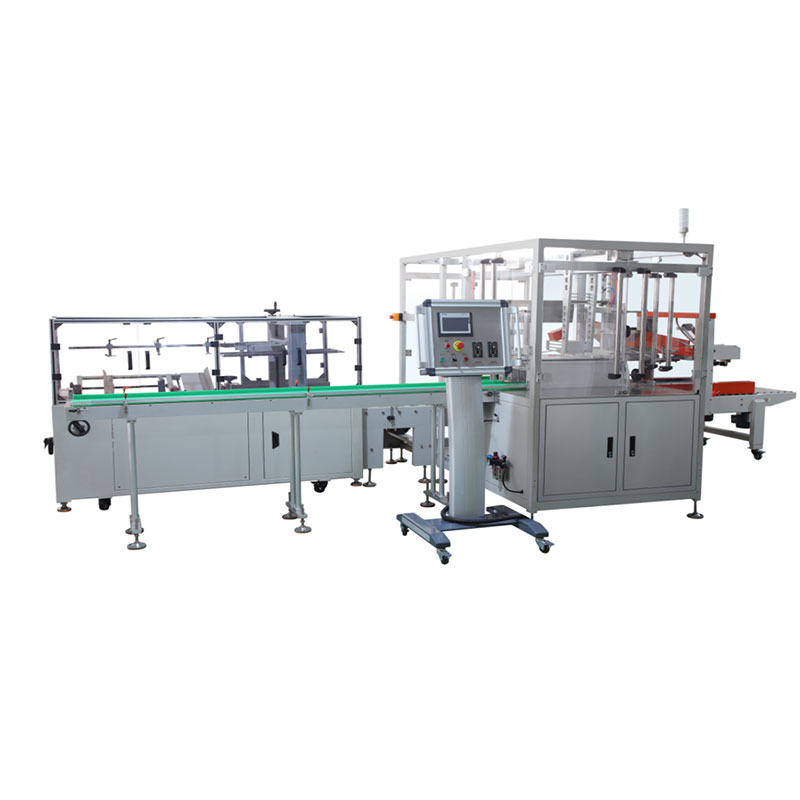

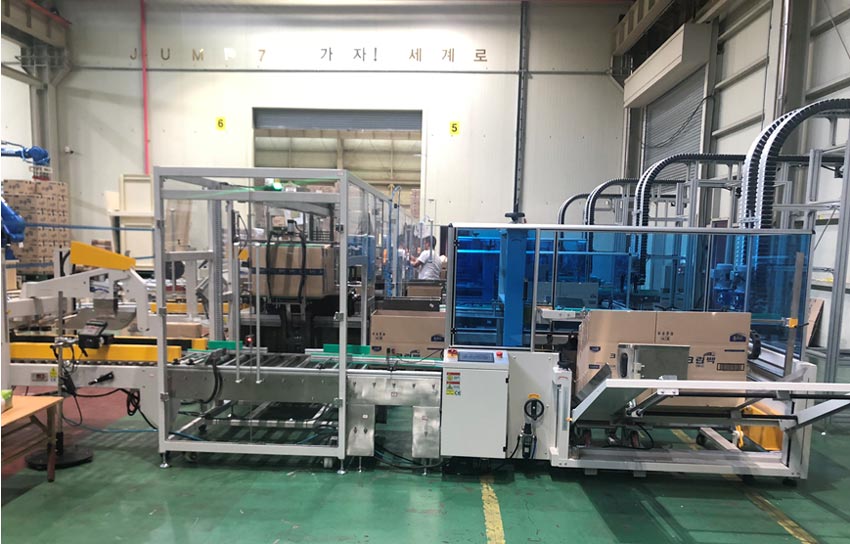

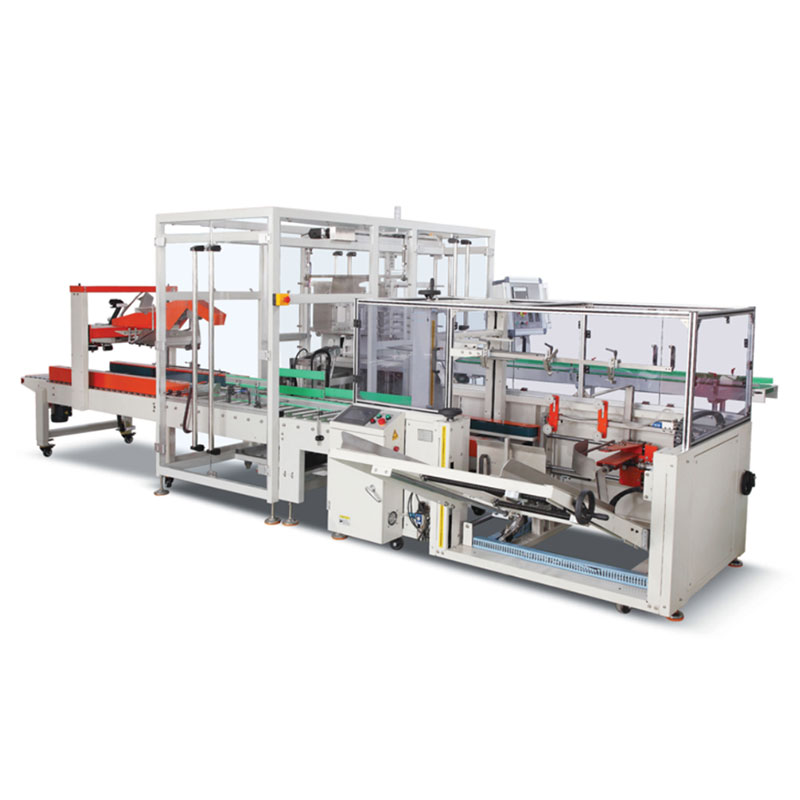

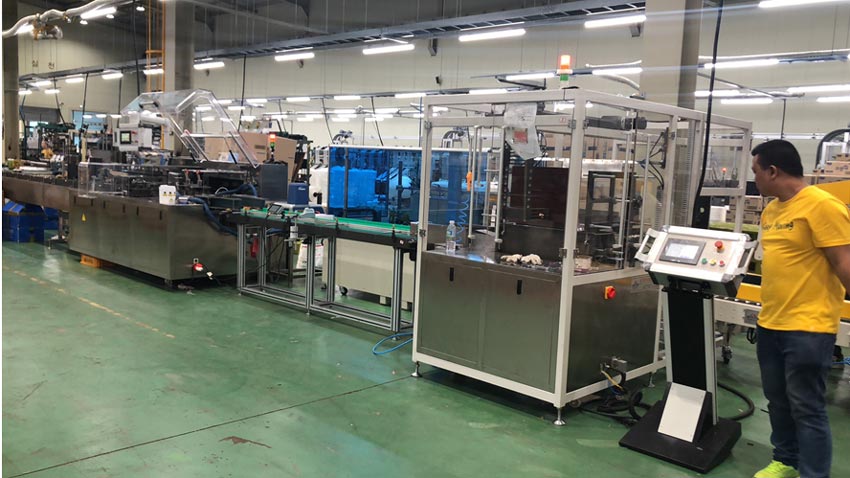

Production Line

Including Case Forming And Case Filling And Case Sealing Machine

1.Case Forming Machine

Instruction

YL-550 Box Carton Packer Machine is suitable for paper carton erecting automatically. It has function of cover-folding, sealing bottom with tape. It is economical and it is with high high-efficiency. It is ideal automatic carton forming and bottom sealing equipment.

Technical Data

Machine dimension	L2200mm×W2100mm×H1500mm
Applicable case range	W: 150 –510	Case inner size 555245530mm Fill way :644=96cartons/case Carton size 1309058
	H: 100- 500
	L: 200 –800
Case capacity	1-2cases/min
Case material	General specification corrugated paper
Suitable tape	W(48,60,72)mm * L(1000y)
Case size exchange	Handle adjustment for about 1 minute
Power supply	220V/380V ; 50/60HZ
Air pressure	5.5-6kg/cm2
machine weight	About 400Kg

Structure about every assembly unit

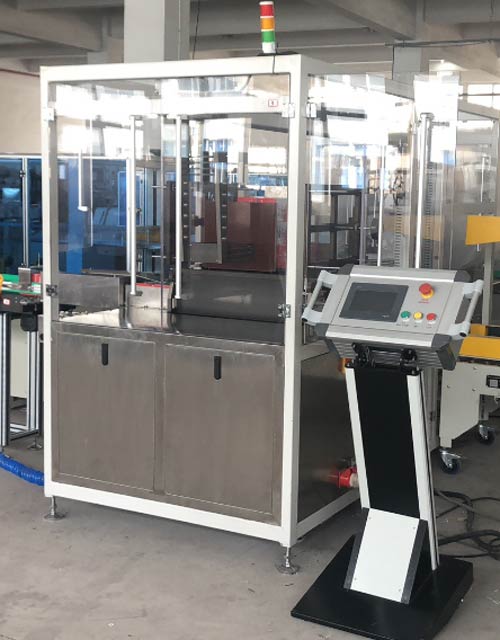

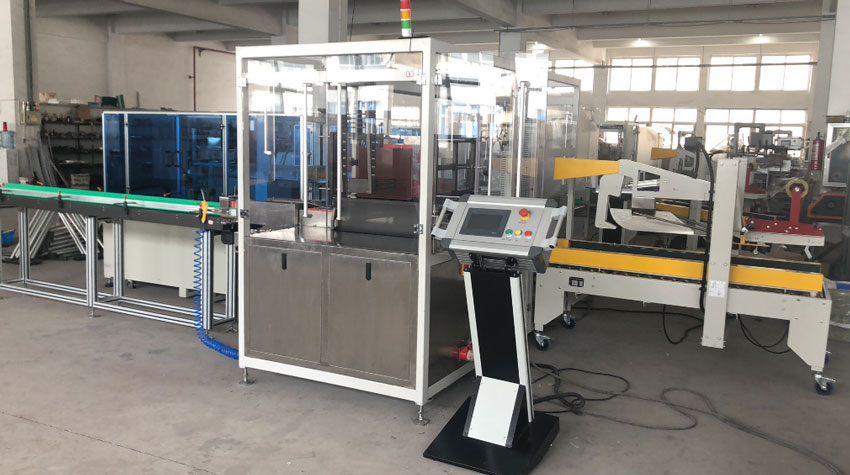

2.Automatic Case Filling Machine

Instruction

Automatic Carton Box Filling Machine according to customer’s request, can put the product into carton box automatically, the machine controlled by computer, easy operation, low noise, steady running, high degree of automation, reliable and newest design, compact confirmation, can connect with carton box forming, sealing machine to be full automatic line. Widely usage, can suitable for various product packed into big carton box.

Technical Parameters

Machine Dimension	L2100×W1300×H1900mm（Can Customize）
Filling Capacity	1-2cases/Min Relating To Carton Size And Filling Quantity
Case size range	W: 150 –500
	H: 100- 350
	L: 200 –500
Power Supply	AC220V 50/60HZ
Air Pressure	5.5～6Kg/Cm2
Machine Weight	About 1100kg

Technical requirements

1.It can be adjusted conveniently and accurately when the size of palletizing and carton changes.

2.It has single-machine independent debugging and production control, output counting by control screen interface, machine speed adjustment and display equipment failure and other figures, Chinese

3.It has safety protection functions such as inspection and monitoring of carton quality and storage, fault alarm, fault shutdown and emergency shutdown.

4.The qualified rate of filling case is 100%; (When filling fails due to special reasons, the equipment alarms and stops, and the filled goods (cartons) are handled manually).

5.when filling is smooth and does not damage the appearance of the case. The appearance of the finished case is intact and neat, and the qualified rate of the appearance is 99.5%.

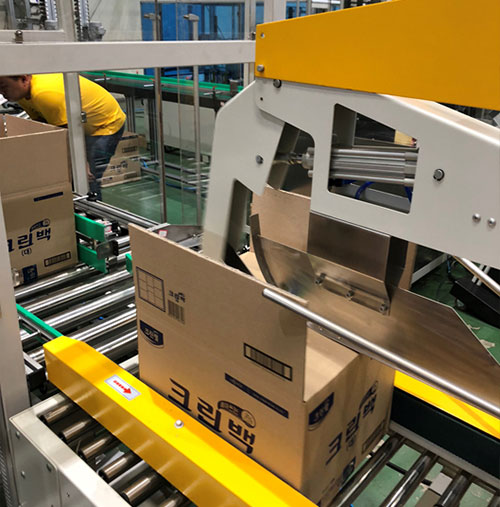

Structure about every assembly unit

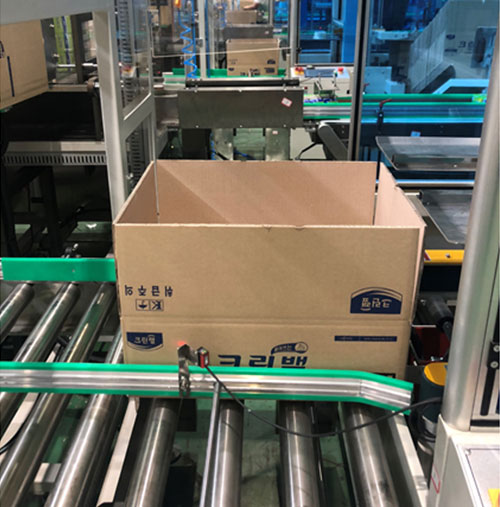

Case transport from case forming machin	case change direction

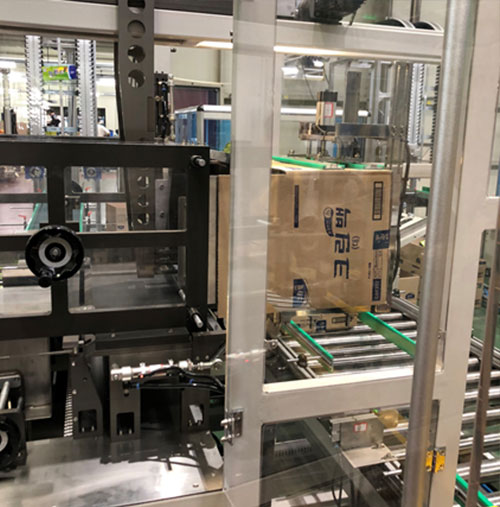

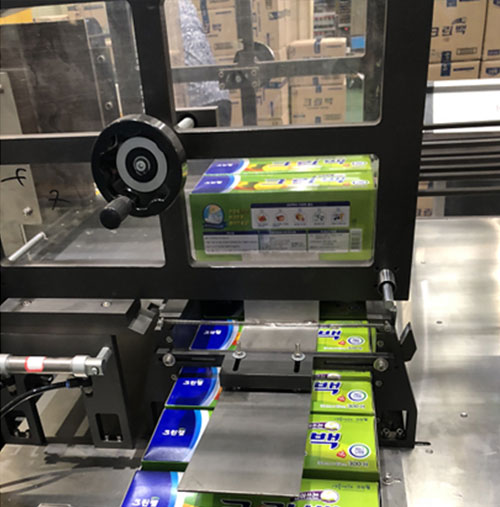

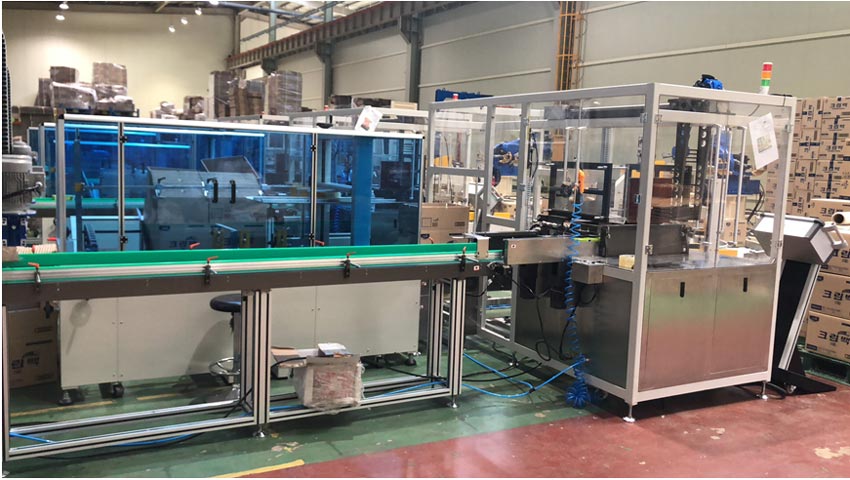

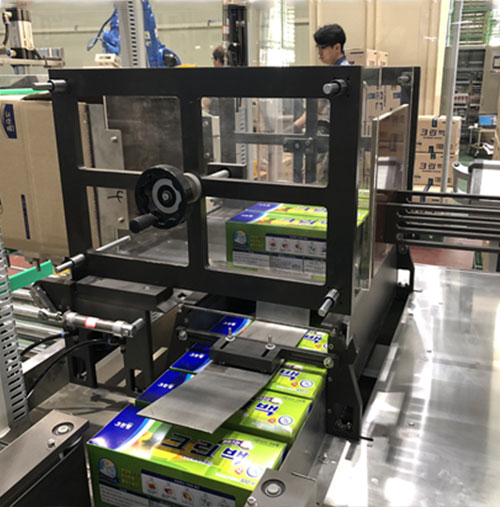

Cartons transport and stacking	pusher cartons into case

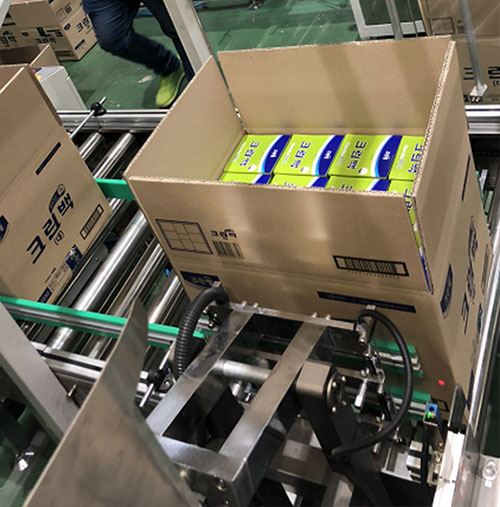

Case come out from case filling machine	Case sealing machine

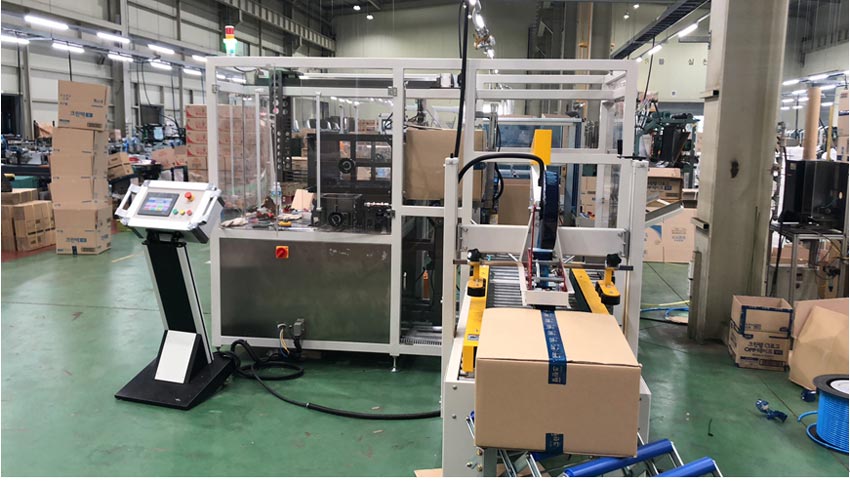

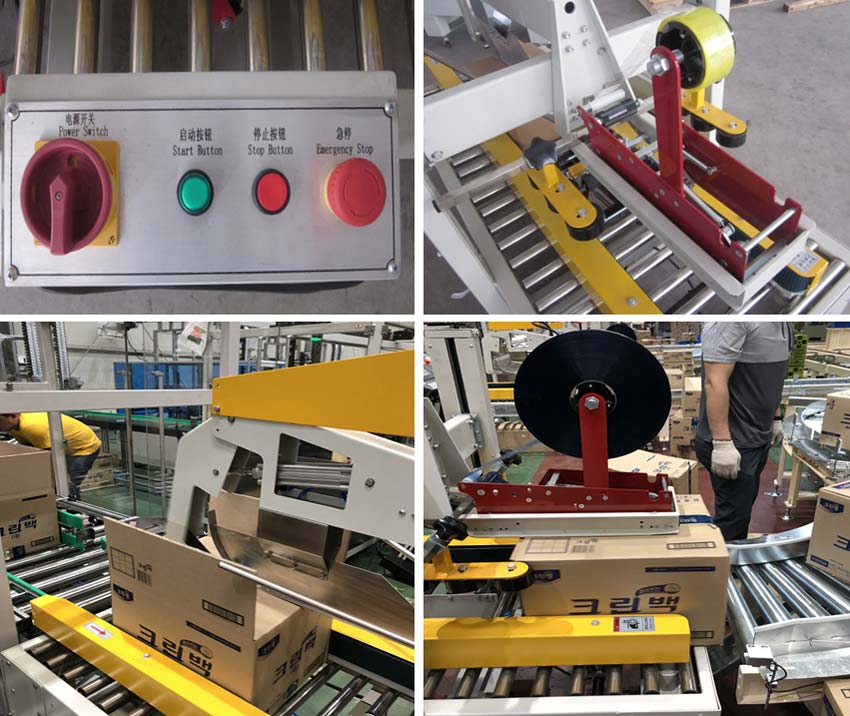

3.Automatic Case Sealing Machine

Technical Parameters

Machine Dimension	L1830mmW835mmH1640mm
Applicable Case Range	W:150mm – 500mm	Case inner size 555245530mm Fill way :644=96cartons/case Carton size 1309058
	H:150mm – 575mm
	L: 500mm - 600mm
Sealing Case Capacity	10-15Cases/min
Power Supply	220v 50/60Hz
Air pressure	5.5-6kg/cm2
Suitable tape	W(48,60,72)mm*L(1000y)
Machine Weight	About 250KG；Foot Wheel 4个

Technical Requirements

1. The whole operation process must be completed in a stable state, with adequate and reliable positioning and protection measures, so as not to cause damage to cartons. Production capacity (> 5 cartons/min).

2. Case sealing is smooth and beautiful. Successful sealing and qualified rate is 100%

3. It has single-machine independent debugging and production control, output counting by control screen interface, machine speed adjustment and display equipment failure and other figures, Chinese (optional) .It also has safety protection functions such as fault alarm, fault shutdown and emergency shutdown. (optional)

4. The size of case can be adjusted conveniently and accurately by handwheel.
