Erecting speed: 720 Cases/h
Case stacking speed: 100cases/h
Air pressure: 0.5Mpa
Air consumption: 300L/min
Power supply: 220V/50Hz
Total power: 7.5KW

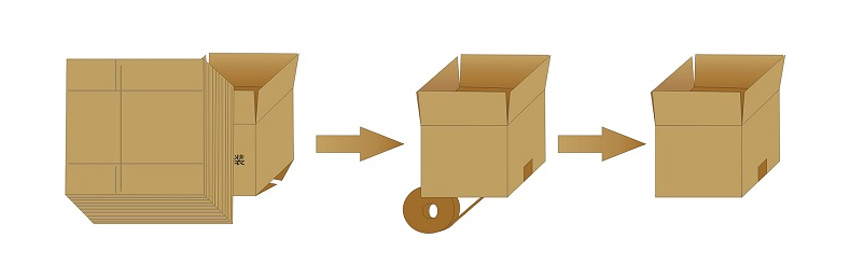

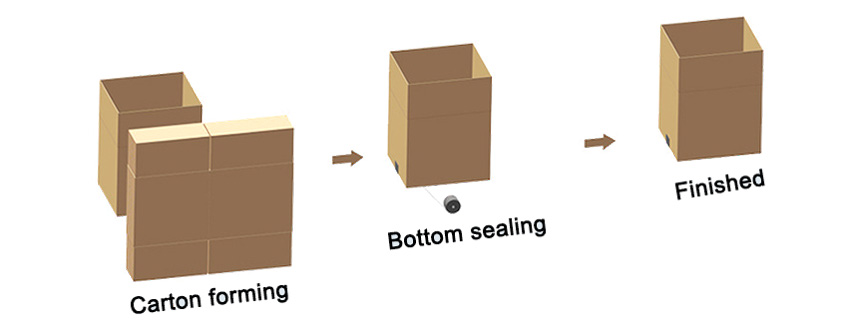

Case Erecting Machine can automatic case erect, bottom folding flap and bend flap, and bottom tape sticking, case transport out and other functions, It is economical and efficient.
|
Erecting speed |
720 Cases/h |
|
Case stacking speed |
100cases/h |
|
Case size mm |
MAX 600×500×350mm; MIN 200×150×100mm |
|
Case material |
General specification corrugated paper |
|
Use tape |
OPP; Kraft paper 38 mm or 50 mm width |
|
Case size exchange |
Handle adjustment for about 1 minute |
|
Air pressure |
0.5Mpa |
|
Air consumption |
300L/min |
|
Power supply |
220V/50Hz |
|
Total power |
7.5KW |
|
Machine Dimension(L×W×H) |
2000×1900×1450mm |
|
Machine weight |
600kg |
