Erecting speed: 720 Cases/h
Case stacking speed: 100cases/h
Air pressure: 0.5Mpa
Air consumption: 300L/min
Power supply: 220V/50Hz
Total power: 7.5KW
It including case errector and case filling and case sealing machine
It can automatic case erect, bottom folding flap and bend flap, and bottom tape sticking, case transport out and other functions, It is economical and efficient.
|
Main technical parameters |
|
|
Erecting speed |
720 Cases/h |
|
Case stacking speed |
100cases/h |
|
Case size mm |
MAX 600×500×350mm; MIN 200×150×100mm |
|
Case material |
General specification corrugated paper |
|
Use tape |
OPP; Kraft paper 38 mm or 50 mm width |
|
Case size exchange |
Handle adjustment for about 1 minute |
|
Air pressure |
0.5Mpa |
|
Air consumption |
300L/min |
|
Power supply |
220V/50Hz |
|
Total power |
7.5KW |
|
Machine Dimension(L×W×H) |
2000×1900×1450mm |
|
Machine weight |
600kg |

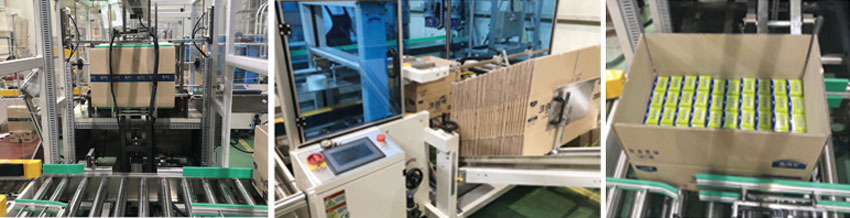

YL-550 Case Packer Machine With Pusher Product Into Case is suitable for filling cartons into carton ,first automatic stacking cartons, empty case are pushed forward then filling cartons into carton which link to cartooning machine It is economical and it is with high efficiency.
|
Main technical parameters |
|
|
Filing speed |
80-250cartons/min(base on carton size) |
|
Case size mm |
MAX 600×500×350mm; MIN 200×150×100mm |
|
Filling product |
Cartons and son on |
|
Air pressure |
0.5-0.6Mpa |
|
Air consumption |
300L/min |
|
Power supply |
220V/50Hz |
|
Total power |
0.4KW |
|
Machine Dimension(L×W×H) |
2100×1300×1900mm |
|
Machine weight |
700kg |
The machine is used to seal top and bottom of carton automatically. It has function of automatic cover folding, automatic sealing with tape and automatic feeding.
|
Main technical parameters |
|
|
Sealing speed |
720 Cases/h |
|
Case size mm |
MAX 600×500×350mm; MIN 200×180×100mm |
|
Air consumption |
50L/min |
|
Power supply |
220V/50Hz |
|
Machine Dimension(L×W×H) |
1830×835×1640mm |
|
Machine weight |
250kg |
Yile is a cartoning machine manufacturer and supplier, factory provides you Automatic Case Packing Machine, Cartoner Machine, Box Packing Machine, Carton Packing Machine, Automatic Cartoning Machine, Food Cartoning Machine, Pharmaceutical Cartoning Machine, Case Packer Machine related knowledge, including speed, price, working principle, function, correct use Methods, and other news.
