YL-90 Horizontal Cartoner

Features

Dimensions in mm: 3800×1350×1900(L×W×H)

Weight in kg: 3000

Steady production speed: 80-85cartons/min

Standard power supply: 380V / 50Hz  three phase

Power consumption in KW: 1.5kw

Air consumption: 120-160L/min

Get a Quote PDF Datasheet
Share:
YL-90 Horizontal Cartoning Machine
YL-90 Horizontal Cartoning Machine
Instruction

YL-90 Horizontal Cartoner is high technology product incorporates of pneumatic-photo-electro-mechanic. It is suitable for inserting tissue, pillow wrapped products, pharmaceutical products and food similar package into carton in a range. The machine finishes running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes canton suction and open, products put into, printing batch number, sealing carton with tuck-in or hot melt glue device.



Sample



Technical Data

Weight & Dimensions

Type

YL-90

Dimensions in mm

3800×1350×1900(L×W×H)

Weight in kg

3000



Output & Speed

Steady production speed

80-85cartons/min



Carton

Grammage

Between( 350-400)g/m2

Item

Pouch Size mm

Carton size mm

1

190*130*35

210*155*45



Utilities

Standard power supply

380V / 50Hz  three phase

Power consumption in KW

1.5kw

Air consumption

120-160L/min

Compressed Air Pressure

0.6-0.8MPa

Noise

<80 dB



Functions and Options

The cartoner includes an automatic station to form the cartons. The carton boxes are held by vacuum. The suck carton device use opposite pull carton which make carton suck very steady

No suction carton by missing product

Product will be manually loaded on conveyer by manual, then other things finished automatically.

Automatically displaying device for trouble, speed and finished products counting

Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return

Adopt human-machine operation system.

International famous brand of electric components such for PLC touch screen, frequency inverters, etc

Stable performance, operation is easy Controls



Sensors

Product presence detection sensor

Carton present detection sensor



Structure about every assembly unit

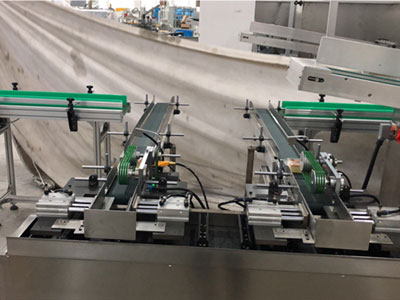

Here feeding device is with linkage,
we also can do feeding product on conveyor by manual

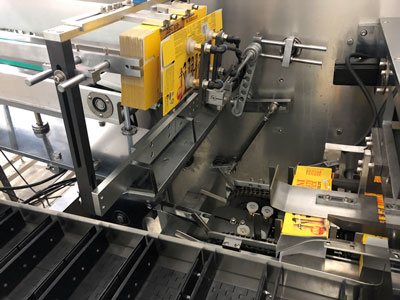

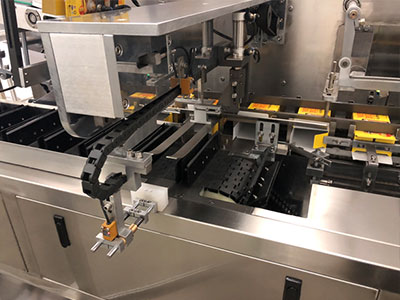

Carton opposite pulling device Pusher

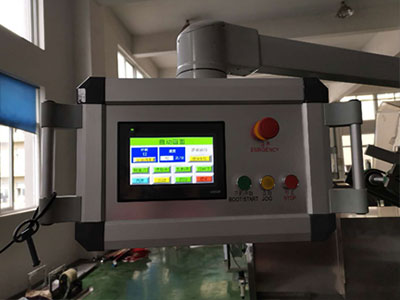

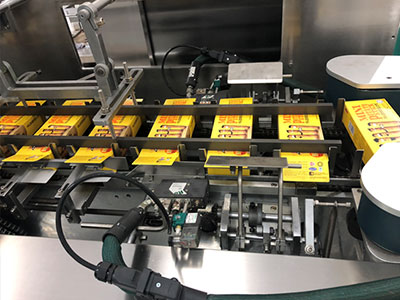

Carton sealing by glue Touch screen

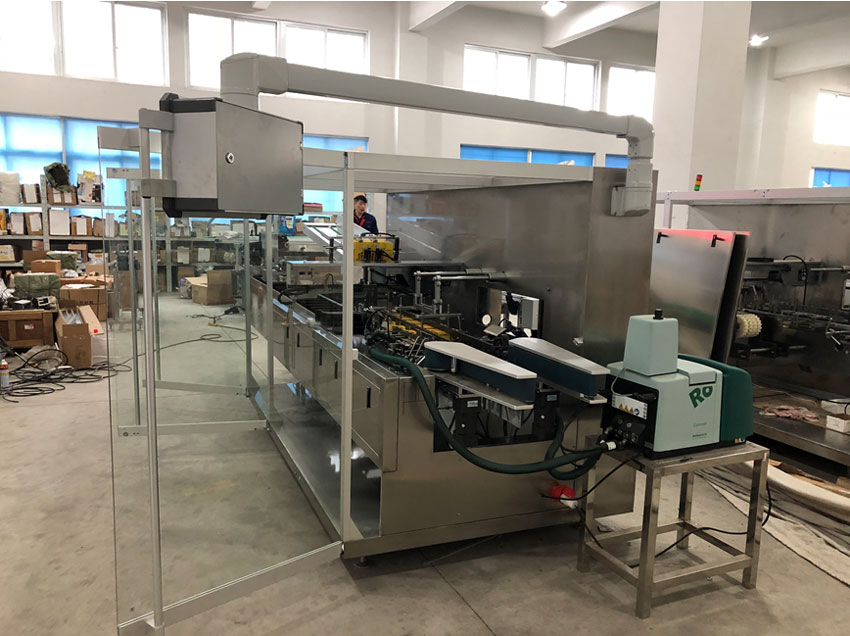

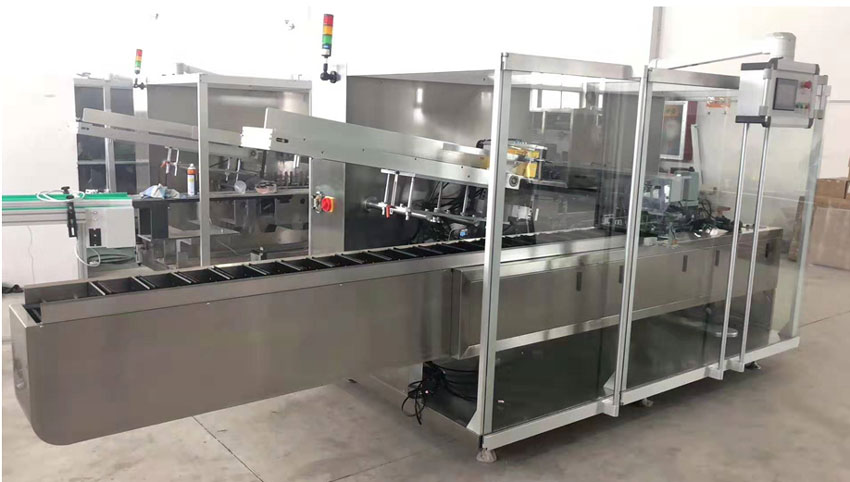

Machine picture



Hot melt glue machine



Technical Data
