Usage process

1. Preparation work: Prepare the items that need to be boxed, and clean the working area of the cartoning machine to ensure that there is no debris.

2. Filling products: Put the products that need to be boxed into the feeding mechanism of the automatic cartoning machine manually or automatically.

3. Adjust parameters: According to the size, shape, and packaging requirements of the items, adjust the parameters of the cartoning machine accordingly, such as box size, filling method and speed, quantity, etc.

4. Run the Automatic Cartoning Machine: Place the items in the feed port of the cartoning machine, start the machine, and the cartoning machine will automatically load the items into the box according to the set parameters and quantity.

5. Measuring and conveying: The Automatic Cartoning Machine measures the product through the measuring system and conveys it to the cartoning area.

6. Boxing: In the boxing area, the automatic cartoning machine automatically boxes the products and arranges the packed products neatly.

7. Sealing: After the box is installed, the automatic cartoning machine seals and seals the box.

8. Check the quality: During the boxing process, it is necessary to constantly check the quality of the boxing to ensure that the items are correctly packed into the box and to avoid missing or incomplete filling.

9. Troubleshooting: If there is an abnormality or failure in the cartoning machine, stop the machine, check possible problems, and perform corresponding troubleshooting and repairs.

9. Finishing work: After the cartoning is completed, take out the packed boxes in time, clean the working area of the cartoning machine, and ensure that the machine and the surrounding environment are clean and tidy.

Please note that the specific usage process may vary depending on different models of automatic cartoning machines. Please operate according to the operating instructions of the specific equipment used.

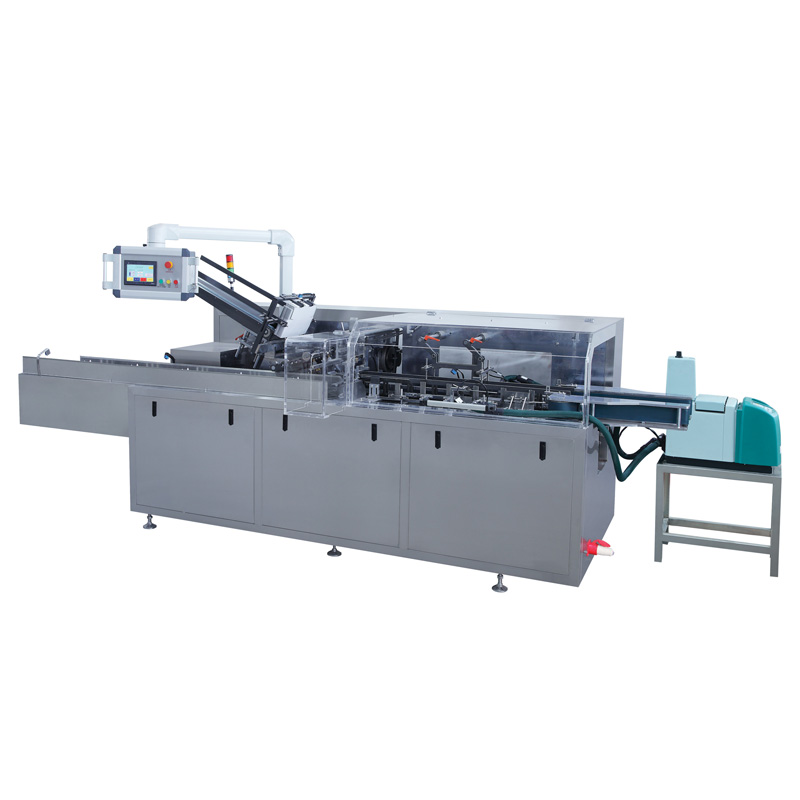

Sample Picture

Main technical parameters

Encasing speed		30-90 boxes/min
Box	Quality requirement	250-350g/m2
	Dimension range(L×W×H)	(65-180)mm×(35-85)mm×(15-50)mm
	Quality requirement	60-70g/m2
Compressed air	Working pressure	≥0.6mpa
	Air consumption	120-160L/min
Power		220V/50Hz
Motor power		0.75kw
Machine dimension(L×W×H)		3100mm×1100mm×1550mm
Machine weight		1500kg

Feature

1.International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2.Adopt human-machine operation system.

3.Automatically displaying device for trouble, speed and finished products counting.

4.Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

5.No products not suction leaflet, no leaflet not suction carton .

6.Automatic detection and rejection device for lacking blister goods and leaflets.

7.Protecting automatically for overloading.

8.stable performance , operation is easy.
