YL-100 Bulb Cartoning Machine

Features

Encasing Speed: 30-90 Boxes/min

Working Pressure: ≥0.6mpa

Air Consumption: 120-160L/min

Power: 220V/50Hz

Motor Power: 0.75Kw

Machine Weight: 1500Kg

Get a Quote PDF Datasheet
Share:
YL-100 Bulb Cartoning Machine
YL-100 Bulb Cartoning Machine

YL-100 Bulb Cartoning Machine can improve production efficiency and packaging quality, save manpower and material costs, adapt to products and cartons of different specifications and shapes, has strong versatility and flexibility, realizes automatic control and fault alarm, is simple and convenient to operate, and can add stickers as needed Additional features such as sealing labels.

Main Technical Parameters

Encasing speed

30-90 boxes/min

Box

Quality requirement

250-350g/m2

Dimension range(L×W×H)

(65-180)mm×(35-85)mm×(15-50)mm

Quality requirement

60-70g/m2

Compressed air

Working pressure

≥0.6mpa

Air consumption

120-160L/min

Power

220V/50Hz

Motor power

0.75kw

Machine dimension(L×W×H)

3100mm×1100mm×1550mm

Machine weight

1500kg

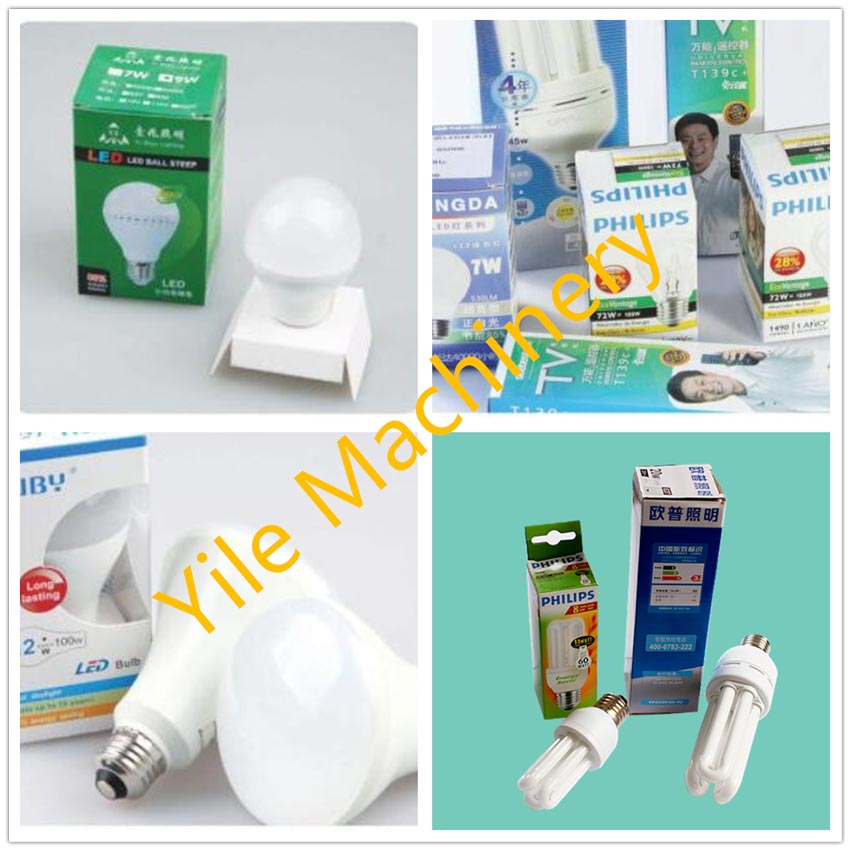

YL-100 Bulb Cartoning Machine Sample Picture



Instruction

Automatic Cartoning Machine can suitable for bulb into carton such as lamp bulb,lamp globe,round bulb .The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes cantons opening and forming, products insert into carton, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with VFFS Machine, Shrink Machine, Overwrapping Machine and pillow packing machine to form a production line.



Feature

1.International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2.Adopt human-machine operation system.

3.Automatically displaying device for trouble, speed and finished products counting.

4.Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

5.No products not suction leaflet, no leaflet not suction carton .

6.Automatic detection and rejection device for lacking blister goods and leaflets.

7.Protecting automatically for overloading.

8.stable performance , operation is easy.





Detailed Drawing
