YL-100 Pencil Cartoning Machine

Features

Encasing Speed: 30-90 Boxes/min

Working Pressure: ≥0.6mpa

Air Consumption: 120-160L/min

Power: 220V/50Hz

Motor Power: 0.75Kw

Machine Weight: 1500Kg

Get a Quote PDF Datasheet
Share:
YL-100 Pencil Cartoning Machine
YL-100 Pencil Cartoning Machine
Instruction

YL-100 Pencil Cartoning Machine is suitable for pencil into carton ,it online can automatic counting pencils then insert into carton and seal carton by tuck-in or with glue. The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes cantons opening and forming, products insert into carton, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with VFFS Machine, Shrink Machine, Overwrapping Machine and pillow packing machine to form a production line.



Feature

1.International famous brand of electrical component such as PLC touch screen,frequency inverters, etc.

2.Adopt human-machine operation system.

3.Automatically displaying device for trouble, speed and finished products counting.

4.Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

5.No products not suction leaflet, no leaflet not suction carton .

6.Automatic detection and rejection device for lacking blister goods and leaflets.

7.Protecting automatically for overloading.

8.stable performance , operation is easy.



Main Technical Parameters

Encasing speed

30-90 boxes/min

Box

Quality requirement

250-350g/m2

Dimension range(L×W×H)

(65-180)mm×(35-85)mm×(15-50)mm

Quality requirement

60-70g/m2

Compressed air

Working pressure

≥0.6mpa

Air consumption

120-160L/min

Power

220V/50Hz

Motor power

0.75kw

Machine dimension(L×W×H)

3100mm×1100mm×1550mm

Machine weight

1500kg

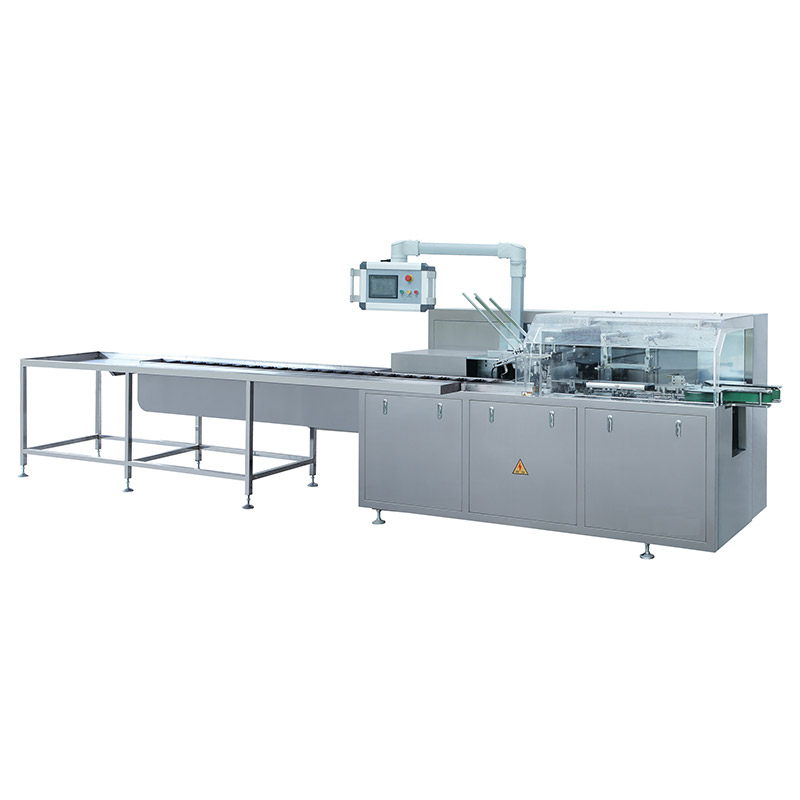

Machine Picture

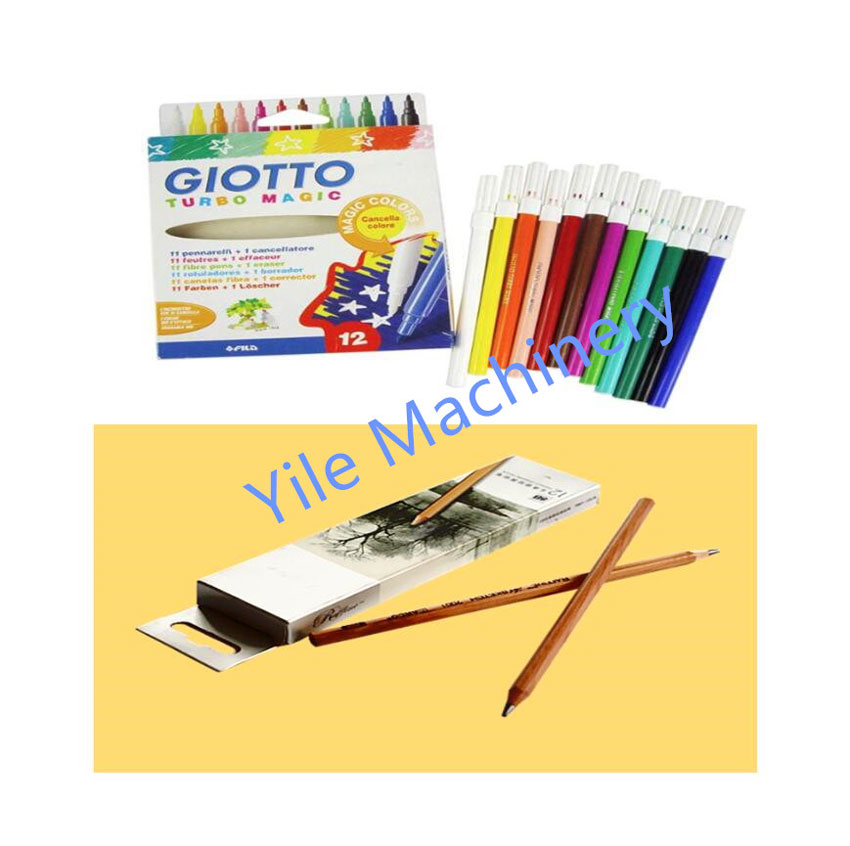

Sample Picture
