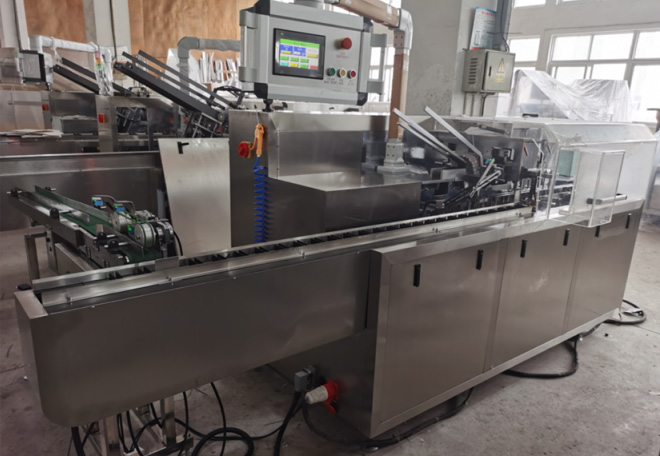

YL-100 Automatic Food Cartoning Machine

Instruction

YL-100 Automatic Cartoning Machine frame adopt stainless steel, suitable for the packaging of pharmaceutical aluminum-plastic plates, round bottles, food, school supplies, toys, cosmetics, auto parts, toothpaste, paper towels, office supplies, hardware, etc. and similar items Box packaging can automatically complete manual folding, carton opening, item packing, batch number printing, box sealing and other work.

Working principle of cartoning machine

On line bottle unscramble and feeding, leaflet fold(1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.

Main performance and structural features:

● Automatic feeding, unpacking, feeding, sealing and output are adopted. Among other packaging forms, the structure is compact and reasonable, and the operation and adjustment are convenient;
● If there is no product or the product is not in place, the machine will run idling and not print the product. When the product is restored to supply, it will automatically run. When the product is in the box, it will automatically stop and the host overload protection device.
● With fault display, alarm and finished product counting functions, it is convenient for maintenance and troubleshooting.
● Automatically display packing speed and count.
● The cartoning machine includes an automatic station to form the cartons. The carton boxes are held by vacuum

YL-100 Automatic Cartoning Machine Main Technical Parameters

Automatic Cartoning Machine Structure About Every Assembly Unit

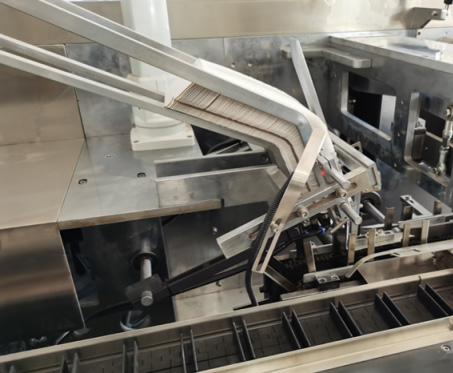

Sensor For Detect Product	Carton Magazine Which Can Full Of  400-500PCS Cartons

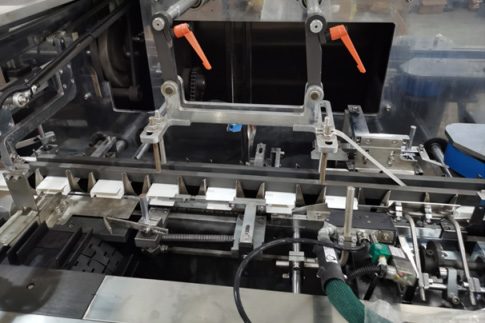

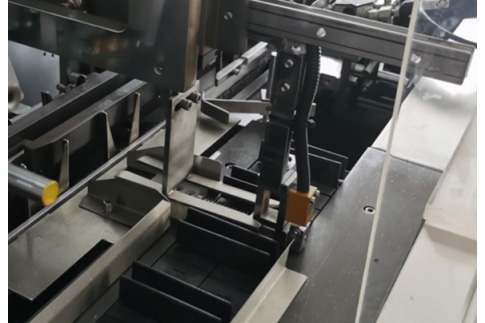

Pusher (Which Product Into Carton)	Carton Sealing

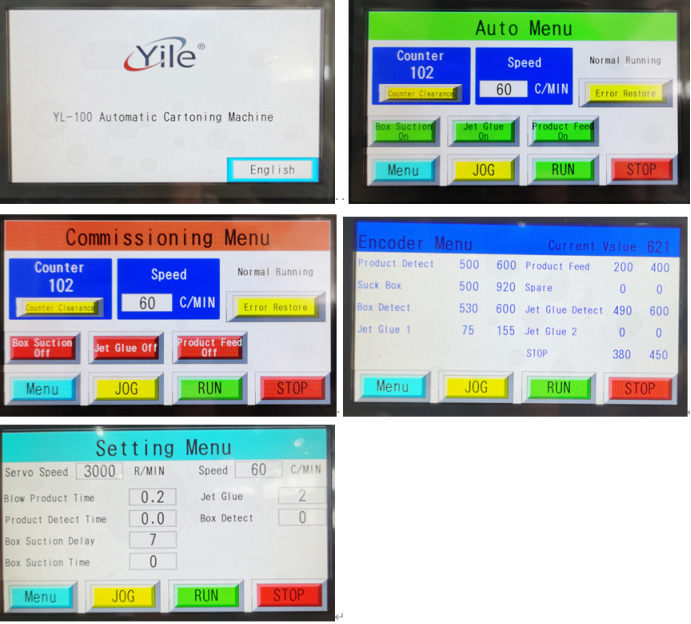

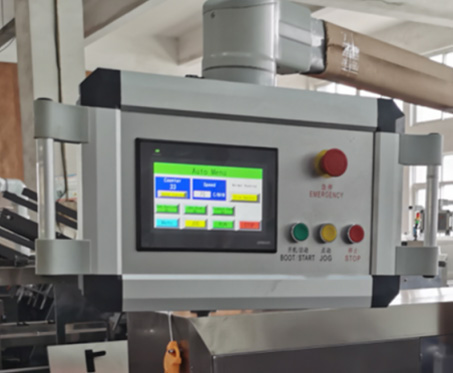

Touch screen

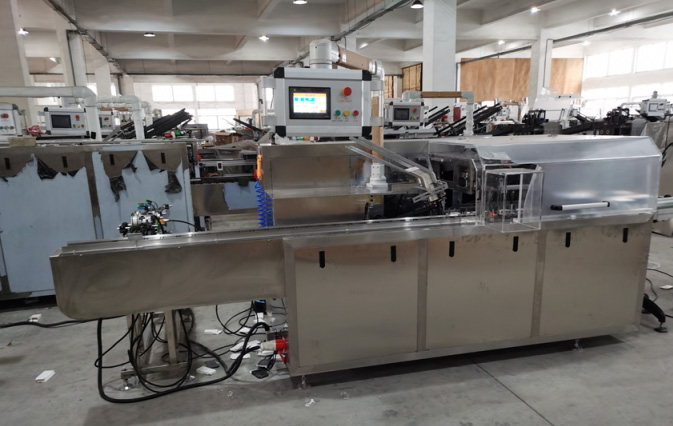

Automatic Cartoning Machine Sample Picture

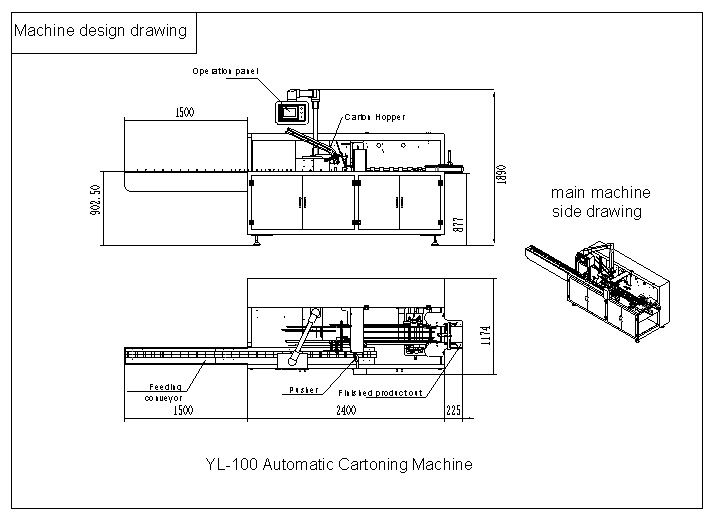

Design Drawing
