YL-20 Dessert Cartoning Machine

Features

Encasing speed: 20-30boxes/min

Working pressure: ≥0.6mpa

Air consumption: 20m3/h

Power: 380V/50Hz

Motor power: 1.5kw

Machine weight: 1600kg

Get a Quote
Share:
YL-20 Automatic Cartoning Machine
YL-20 Automatic Cartoning Machine
Instruction

YL-20 Automatic Cartoning Machine is suitable for food product into carton, such as cake ,biscuit, milk pouch, chocolate bar, coffee sachet, sticks, food sachet/pouch, ice cream/popsicle, cheese, frozen product, chicken, can, food tray, pillow pack product, film roller, tissue, bulb, bearing, pencil, protective pad, mask, other product. The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes cantons opening and forming, products insert into carton, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with VFFS Machine, Shrink Machine, Overwrapping Machine and pillow packing machine to form a production line.



Feature

1.International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2.Adopt human-machine operation system.

3.Automatically displaying device for trouble, speed and finished products counting.

4.Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons

5.No products no suction carton

6.Automatic detection and rejection device for lacking product.

7.Protecting automatically for overloading.

8.stable performance operation is easy.



Main technical parameters

Encasing speed

20-30boxes/min

Box

Quality requirement

250-450g/m2

Dimension range(L×W×H)

(100-350)mm×(100-250)mm×(20-100)mm

Compressed air

Working pressure

≥0.6mpa

Air consumption

20m3/h

Power

380V/50Hz

Motor power

1.5kw

Machine dimension(L×W×H)

4200mm×1350mm×1900mm

Machine weight

1600kg

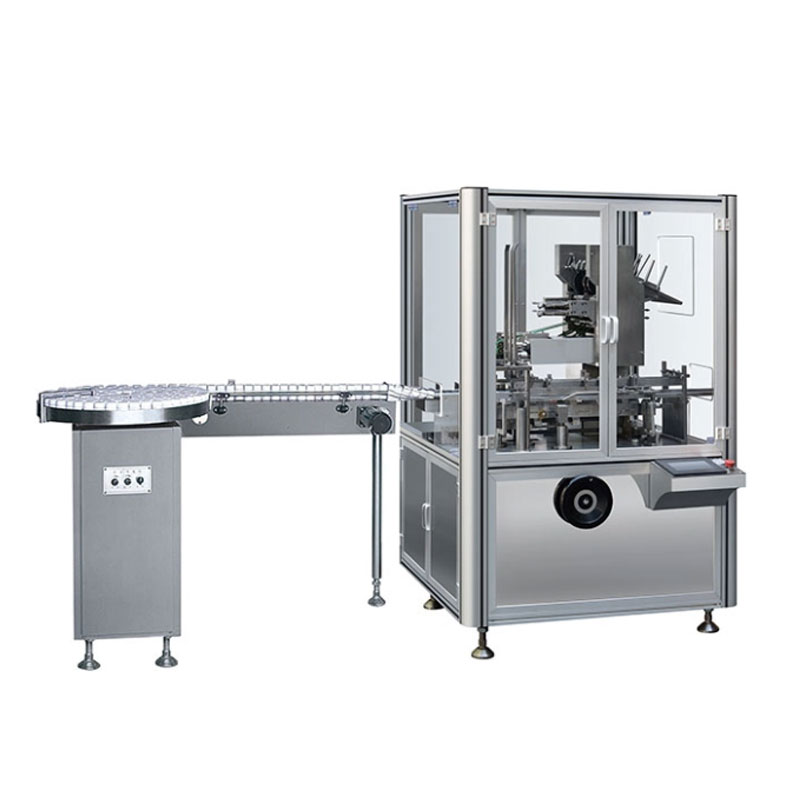

Machine Picture



Sample Picture
