YL-60 Automatic Cartoning Machine

Features

Encasing speed: 30-60boxes/min

Working pressure: ≥0.6mpa

Air consumption: 20m3/h

Power: 380V/50Hz

Motor power: 1.5kw

Machine weight: 1600kg

Instruction

YL-60 Automatic Cartoning Machine was finished running by a series of photo-electro controllers to make the machine stable and guarantee the packing quality. It includes cantons opening and forming, products insert into cartons, printing batch numbers, sealing, or option hot-glue device. The machine can be single-used or linked with VFFS Machine, Shrink Machine, Overwrapping Machine, and pillow packing machine to form a production line.

Feature

● Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons

● International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

● Automatically displaying device for trouble, speed and finished products counting.

● Automatic detection and rejection device for lacking product.

● Protecting automatically for overloading.

● Adopt human-machine operation system.

● stable performance operation is easy.

● No products no suction carton

Main technical parameters

Encasing speed		30-60boxes/min
Box	Quality requirement	250-350g/m2
	Dimension range(L×W×H)	(70-250)mm×(80-180)mm×(20-90)mm
Compressed air	Working pressure	≥0.6mpa
	Air consumption	20m3/h
Power		380V/50Hz
Motor power		1.5kw
Machine dimension(L×W×H)		3800mm×1350mm×1900mm
Machine weight		1600kg

Application

Automatic Cartoning Machine can be suitable for a food product in a carton, such as cake, biscuit, milk pouch, chocolate bar, coffee sachet, sticks, food sachet/pouch, ice cream/popsicle, cheese, frozen product, chicken, can, food tray, pillow pack product, film roller, tissue, bulb, bearing, pencil, protective pad, mask, other product.

Design Drawing

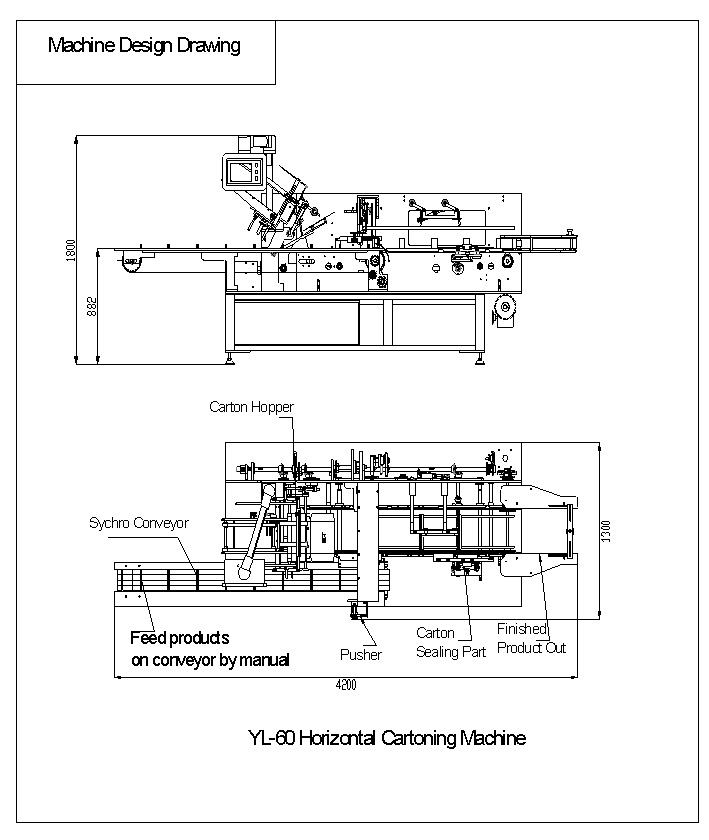

YL60 Horizontal Cartoning Machine Design Drawing

Product Details Picture

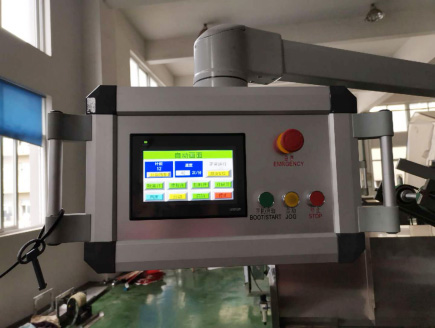

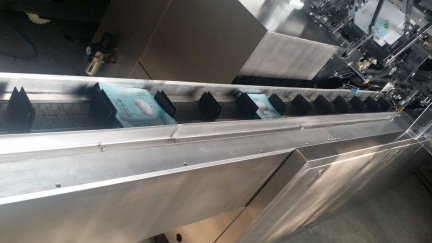

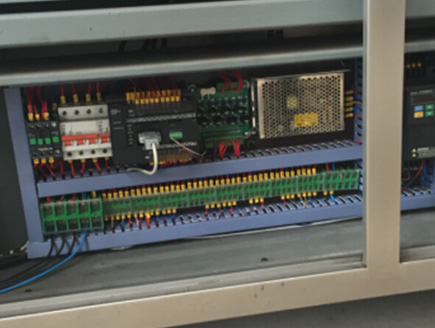

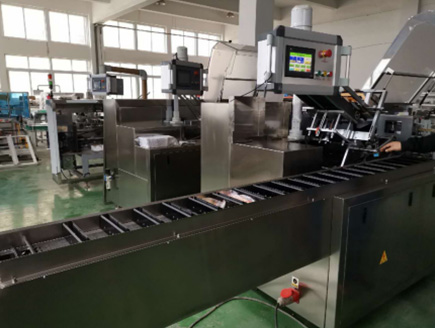

Feeding Product On Conveyor By Manual	Touch-Screen	Circuit Board

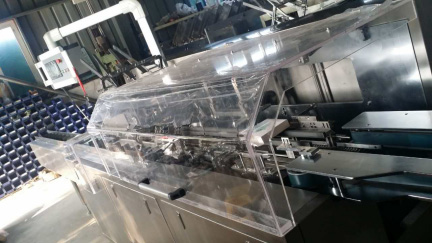

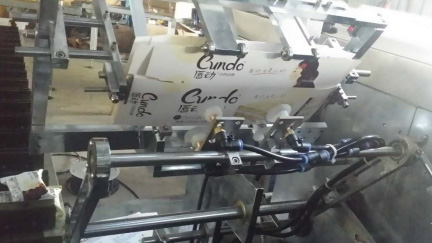

Feeding Product On Conveyor By Manual	Carton Suck Device	Big Cover

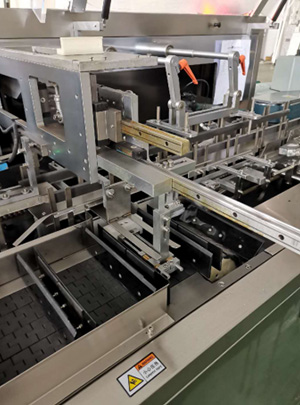

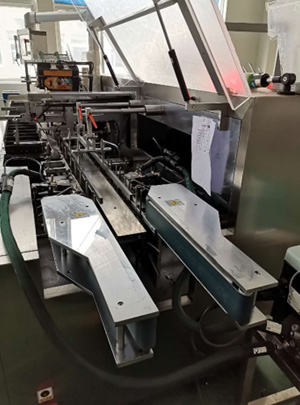

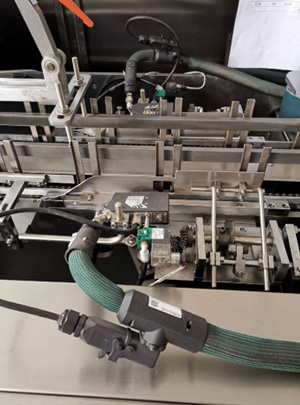

Pusher	Carton Sealing By Glue	Finish Cartons Come Out By Carton Transport Belt

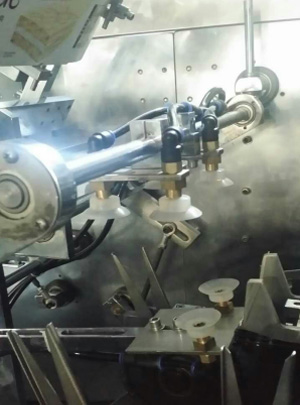

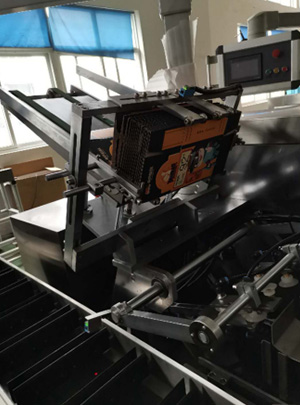

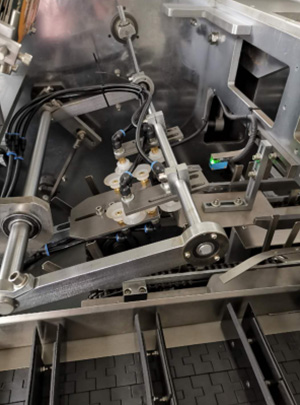

Carton Opposite Pulling Device	Carton Double Suck Plate	Carton Hopper

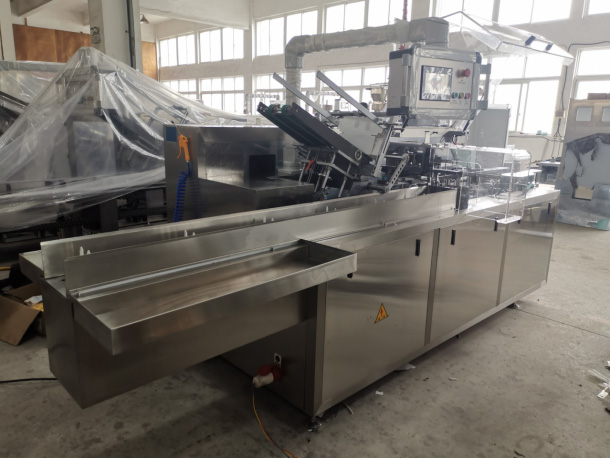

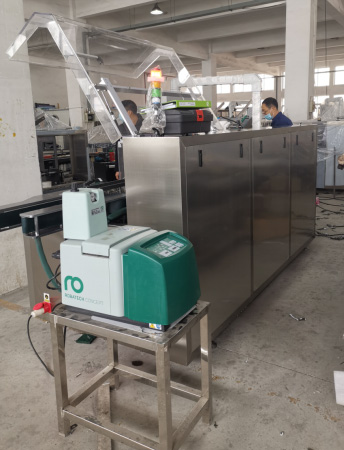

Machine Picture In Our Factory

Terms and Conditions

1. Shipment: by sea
2. Packing: Wooden Case
3. Terms of Trade: Base on FOB PRICE
4. Delivery Time: Around 40days after receiving the payment deposit
5. Quality Guarantee: The seller will provide free spare parts within 12 months after the date of successful installation in case of the machine’s quality discrepancy.
6. Installation and commissioning: The seller will send the technician to the user’s site for 7 days-10 days, the round international air ticket and accommodation including hotel, and food abroad would be arranged by the buyer.
