YL-60 Horizontal Cartoner

Features

Dimensions in mm: 4200×1350×1650(L×W×H)

Weight in kg: 1200

Steady production speed: 50cartons/min

Standard power supply: 380V / 50Hz  three phase

Power consumption in KW: 1.5kw

Air consumption: 120-160L/min

Get a Quote PDF Datasheet
Share:

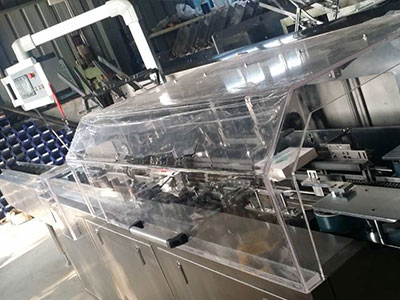

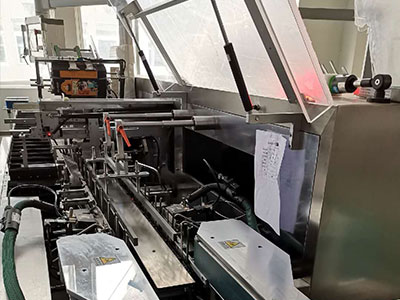

YL-60 Horizontal Cartoning Machine For Food Pouch
YL-60 Horizontal Cartoning Machine For Food Pouch

Instruction

The entire packaging process of the horizontal cartoning machine is also divided into four stages: unboxing, opening, filling, and closing. Horizontal cartoning machines generally place the cartons upside down, and the products are pushed into the cartons from the side. This method requires the products to be relatively regular and easy to push. This type of packaging is used for packaging of facial masks, food, and daily necessities, and the products are output horizontally by a conveyor belt.

YL-60 Horizontal Cartoner is high technology product incorporates of pneumatic-photo-electro-mechanic. It is suitable for inserting tissue, pillow wrapped products, pharmaceutical products and food similar package into carton in a range.
The machine finishes running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes canton suction and open, products put into, printing batch number, sealing carton with tuck-in or hot melt glue device.

YL-60 Horizontal Cartoner which feeding product on conveyor by manual



Horizontal Cartoner Sample



Technical Data

Weight & Dimensions

Type

YL-60

Dimensions in mm

4200×1350×1650(L×W×H)

Weight in kg

1200



Output & Speed

Steady production speed

50cartons/min



Carton

Grammage

Between( 350-400)g/m2

Item

Pouch Size mm

Carton size mm

1



185*100*62



Utilities

Standard power supply

380V / 50Hz  three phase

Power consumption in KW

1.5kw

Air consumption

120-160L/min

Compressed Air Pressure

0.5-0.8MPa

Noise

<80 dB



Functions and Options

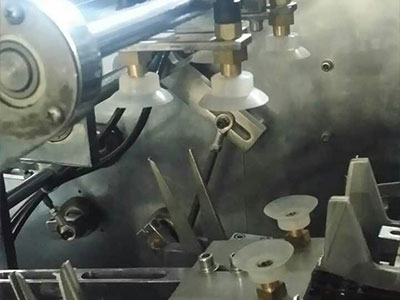

The cartoner includes an automatic station to form the cartons. The carton boxes are held by vacuum. The suck carton device use opposite pull carton which make carton suck very steady

No suction carton by missing product

Product will be manually loaded on conveyer by manual, then other things finished automatically.

Automatically displaying device for trouble, speed and finished products counting

Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return

Adopt human-machine operation system.

International famous brand of electric components such for PLC touch screen, frequency inverters, etc

Stable performance, operation is easy Controls



Sensors

Product presence detection sensor

Carton present detection sensor



Structure about every assembly unit

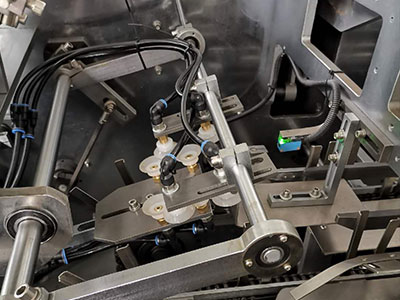

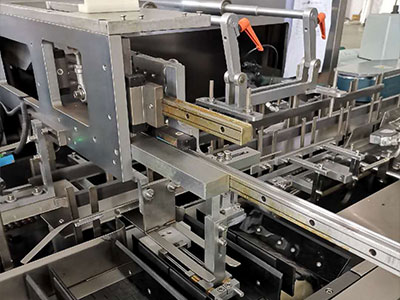

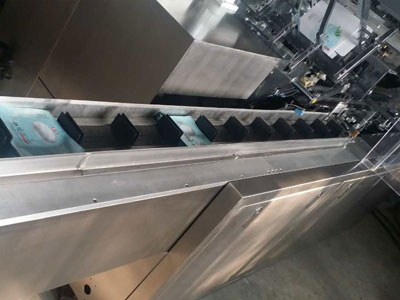

Feeding product on conveyor by manual Feeding product on conveyor by manual Carton suck device

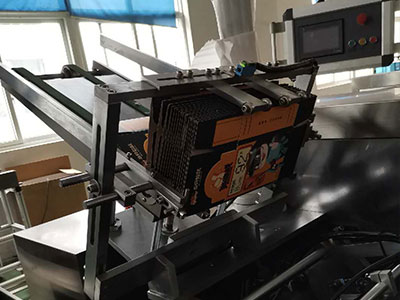

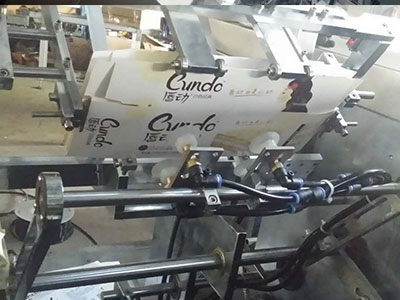

Carton opposite pulling device carton double suck plate Carton hopper

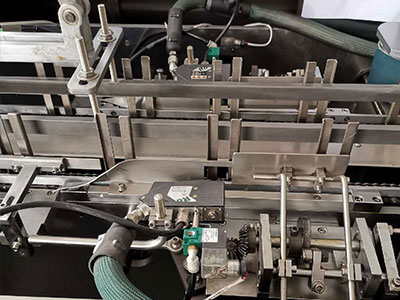

Pusher Carton sealing by glue finish cartons come out by carton transport belt

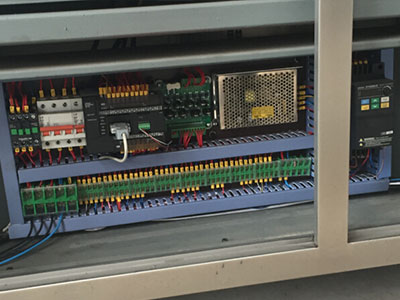

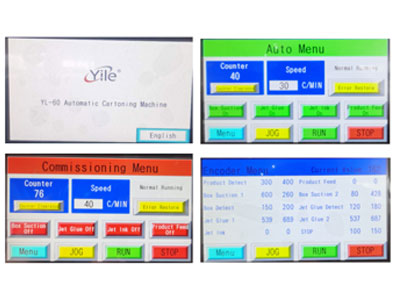

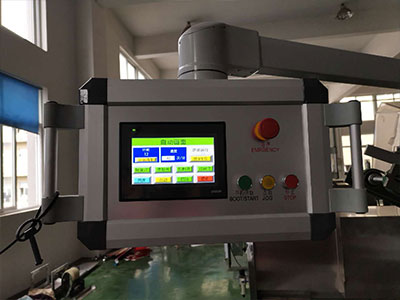

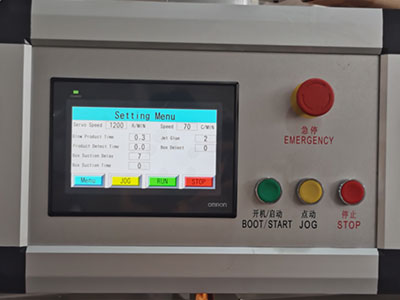

Touch screen Big cover Electrical circuit

Touch screen Touch screen

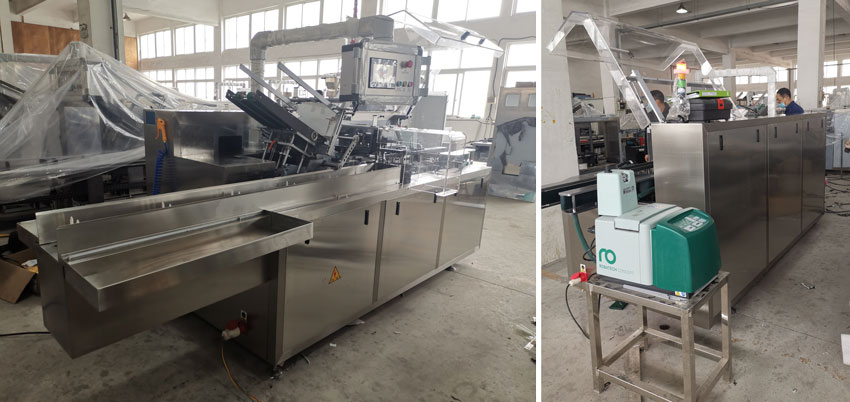

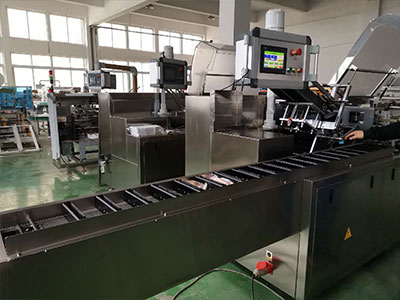

Picture In Our Factory

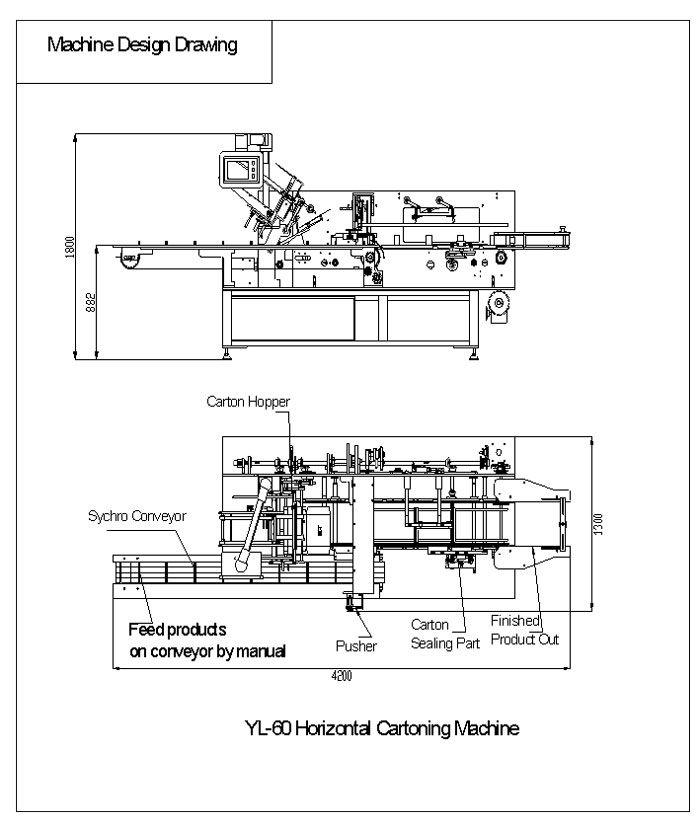

Design Drawing



Hot melt glue machine



Technical Data
