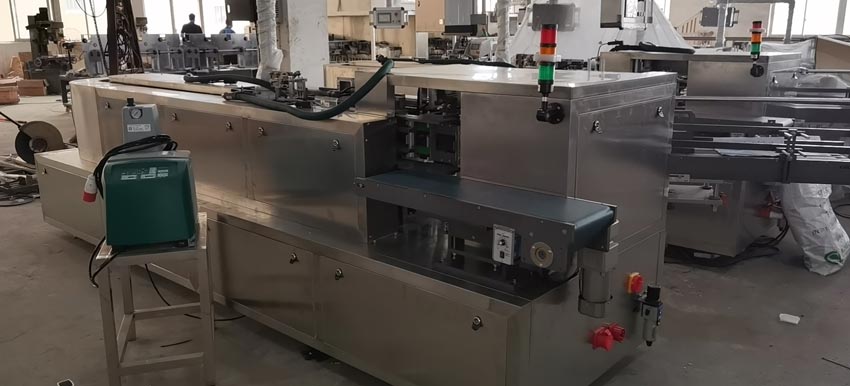

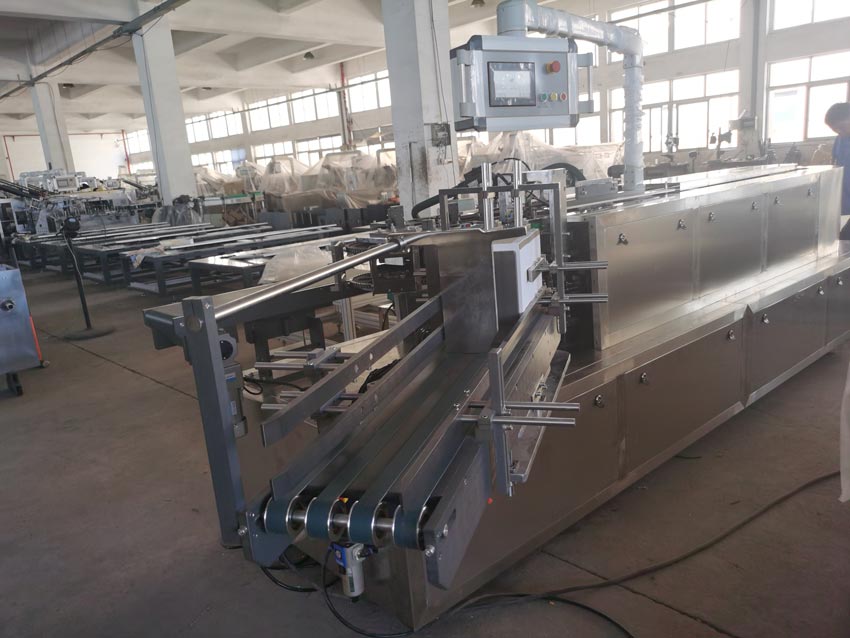

YL-60B Vertical Intermittent Cartoner

Features

Dimensions in mm: 4700×2000×2300(L×W×H)

Weight in kg: 1500

Steady production speed: 25cartons/min

Standard power supply: 380V / 50Hz three phase

Power consumption in KW: 3.5kw

Air consumption: 120-160L/min

Get a Quote

Instruction

Vertical Intermittent Cartoner is a type of packaging machinery. Its main function is to package products into boxes, improve the appearance of the product, and make the product easy to use and more marketable. Vertical Cartoner mainly completes product boxing, manual boxing and carton sealing. Instructions for some cartoning machines are manually put in, but some cartoning machines can also perform labeling and other actions on cartons.

YL-60B Vertical Intermittent Cartoner is a fully automatic vertical type opening up cartoner, which speed is the fastest in China now. It is applicable for coffee capsules, wash powder, chocolate, pet food, penicillin bottle, perfume bottle, etc. This cartoning machine is able to encase irregular bulk items that horizontal cartoning machine can not do. Combined with the world advanced technology and our company’s powerful design team, this machine has obtained many design patents. It is favored by domestic and foreign companies.

Working Process

Technical Data

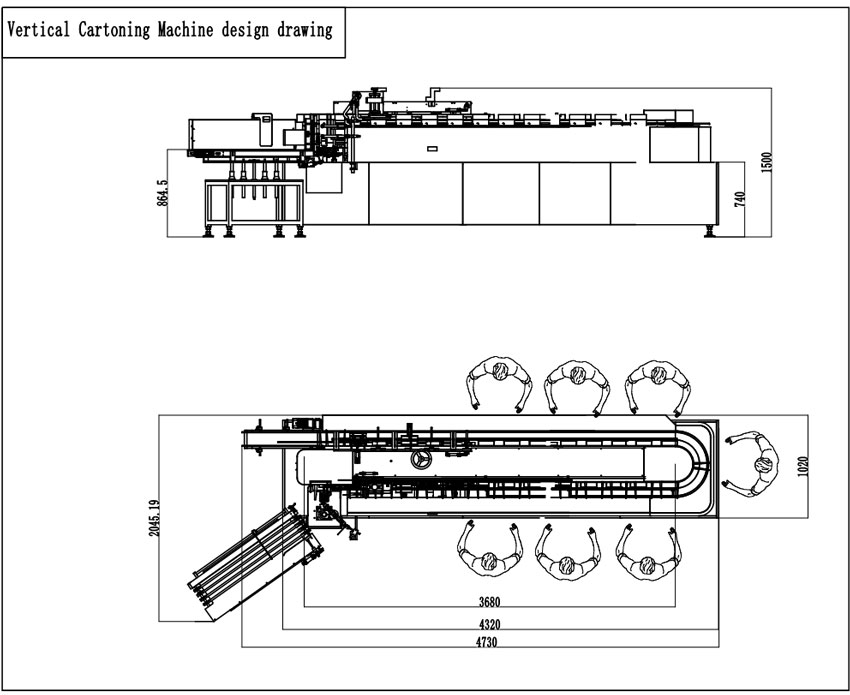

Weight & Dimensions

Type	YL-60B
Dimensions in mm	4700×2000×2300(L×W×H)
Weight in kg	1500

Output & Speed

Steady production speed

25cartons/min

Carton

Grammage	Between( 350-400)g/m2
Item	Product Size mm	Carton size mm
1		744525

Utilities

Standard power supply	380V / 50Hz three phase
Power consumption in KW	3.5kw
Air consumption	120-160L/min
Compressed Air Pressure	0.5-0.7MPa
Noise	＜80 dB

Functions and Options

The cartoner includes an automatic station to form the cartons. The carton boxes are held by vacuum.

Product will be manually loaded on conveyer by manual, then other things finished automatically.

Automatically displaying device for trouble, speed and finished products counting

Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return

Adopt human-machine operation system.

International famous brand of electric components such for PLC touch screen, frequency inverters, etc

Stable performance, operation is easy Controls

Sensors

Carton present detection sensor

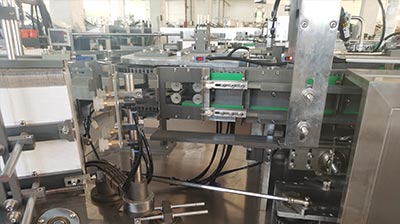

Structure about every assembly unit

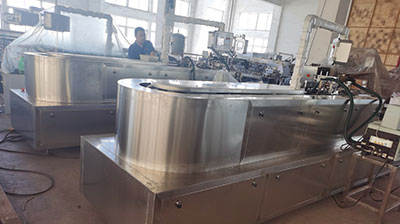

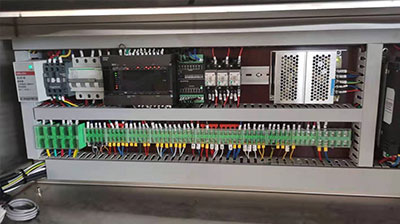

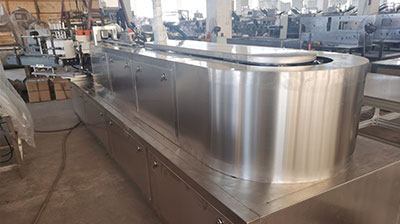

Touch screen, PLC control system and man-machine interface display all adopt international famous brand.	Big empty boxes storage, the machine could open the boxes continuously working.	Big area for feeding different kinds of products

Feeding- rotary by manual	Close Box automatically	Adopt safety protective cover, the whole machine is designed accord to CE certification.
