YL-90 Automatic Cartoning Machine

Instruction

YL-90 Automatic Cartoning Machine is a high technology product that incorporates pneumatic-photo-electro-mechanic. It is suitable for inserting tissue, pillow-wrapped products, pharmaceutical products, and food similar package into cartons in a range. YL-90 Automatic cartoning machine finishes running by a series of photo-electro controllers to make the machine stable and guarantee the packing quality. It includes canton suction and opening, products put into, printing batch number, sealing carton with tuck-in or hot melt glue device.

Features

● YL-90 Automatic Cartoning Machine includes an automatic station to form the cartons. The carton boxes are held by vacuum. The suck carton device use opposite pull carton which make carton suck very steady
● Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return
● Product will be manually loaded on conveyer by manual, then other things finished automatically.
● Automatically displaying device for trouble, speed and finished products counting
● Stable performance, operation is easy Controls
● Adopt human-machine operation system.
● No suction carton by missing product

Main technical parameters

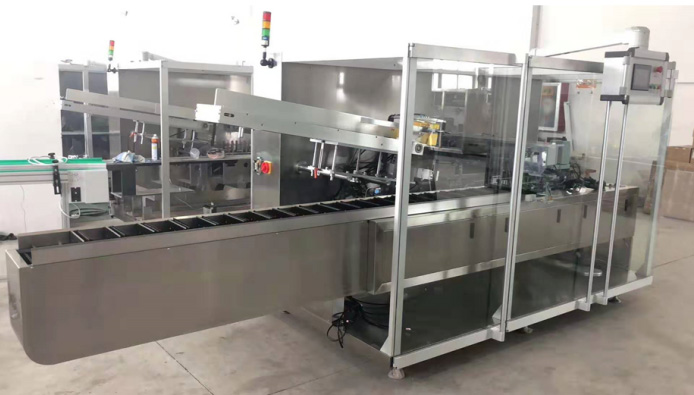

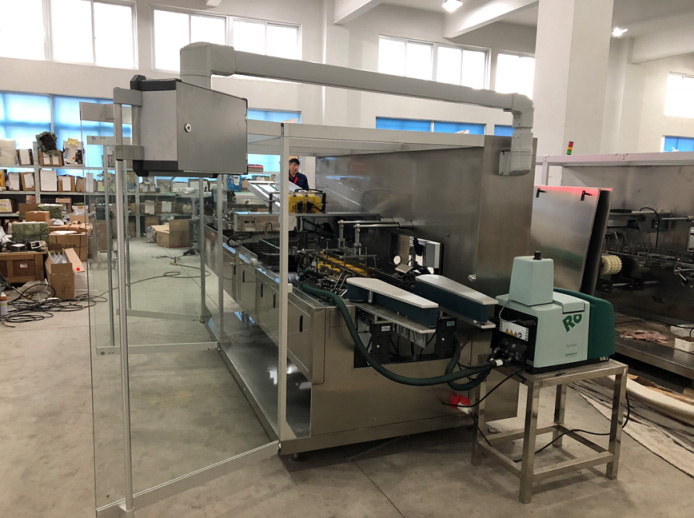

YL-90 Automatic Cartoning Machine Sample Picture

Structure About Every Assembly Unit

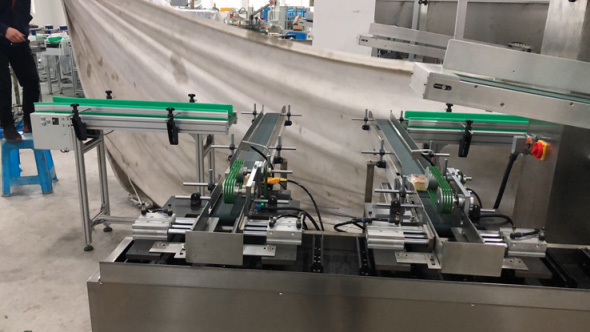

Here feeding device is with linkage ,we also can do feeding product on conveyor by manual

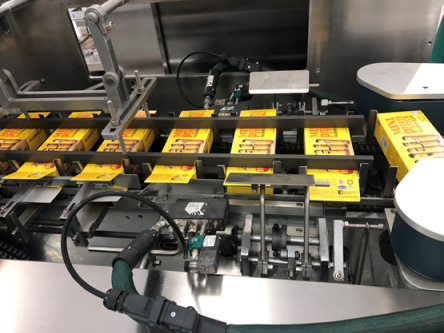

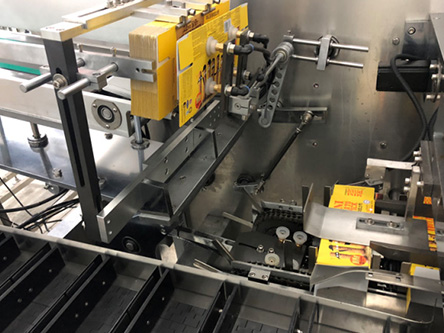

Carton opposite pulling device	Carton sealing by glue

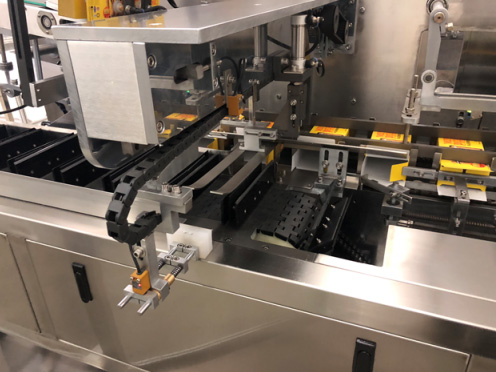

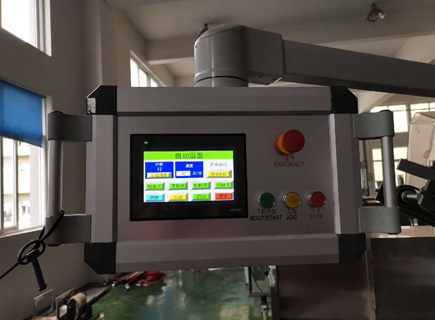

Pusher	Touch-screen

Component List
