Instruction

Automatic High Speed Pharmaceutical Cartoning Machine can suitable for bottle(glass/flat),vial into carton. The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and forming, products and leaflet insert into carton, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with label machine, tube sealing andfilling Machine, blister packing machine, shrink machine, overwrapping machine, bundling machine and case packer to form a production line

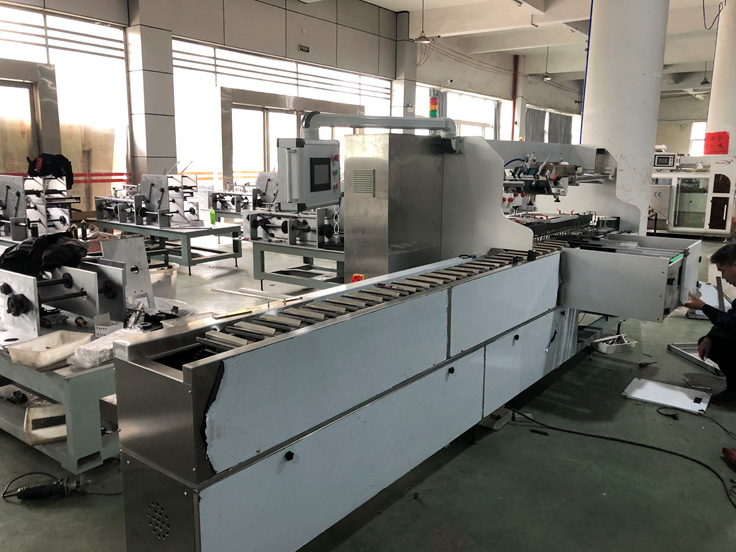

YL-160 Pharmaceutical Cartoning Machine

Main Technical Parameters

Encasing speed		50-130 boxes/min
Box	Quality requirement	250-350g/m2
	Dimension range(L×W×H)	(55-200)mm×(25-85)mm×(12-70)mm
	Quality requirement	60-70g/m2
Leaflet	Unfolded leaflet specification(L×W)	(100-220)mm×(100-180)mm
Leaflet	Fold range	(1-4) fold
Compressed air	Working pressure	≥0.6mpa
Compressed air	Air consumption	20m3/h
Power		380V/50Hz
Motor power		1.5kw

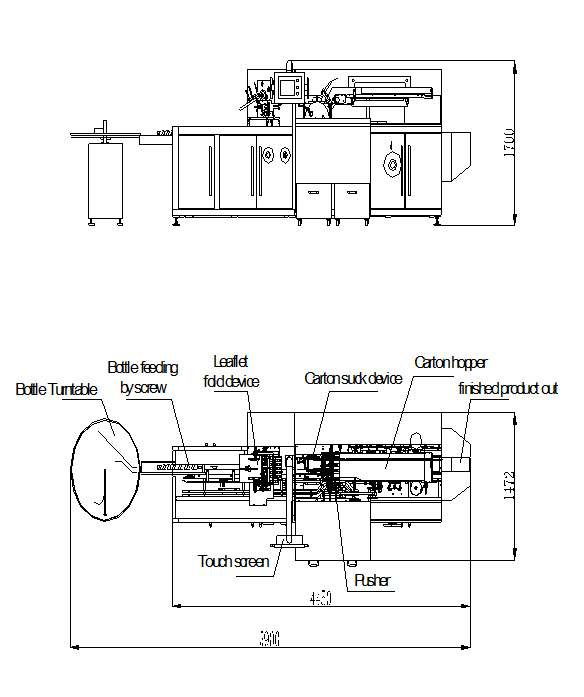

Machine dimension(L×W×H)		3500mm×1320mm×1700mm
Machine weight		1300kg

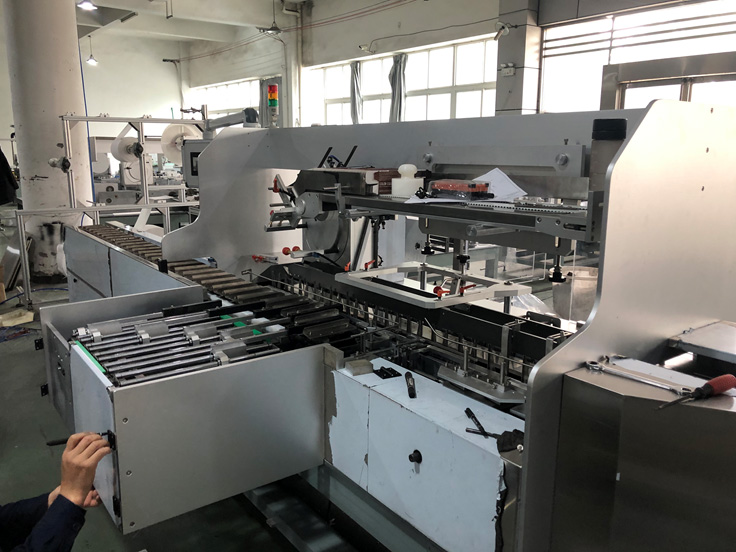

Pharmaceutical cartoning machine

Feature

(1) Pharmaceutical cartoning machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
(2) International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
(3) Automatically displaying device for trouble, speed and finished products counting.
(4) Automatic detection and rejection device for lacking blister goods and leaflets.
(5) No products not suction leaflet, no leaflet not suction carton .
(6) Adopt human-machine operation system.
(7) Protecting automatically for overloading.
(8) Stable performance , operation is easy.
