Instruction

YL-270 Pre-made Pouch Packing Machine is new model developping base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

This machine is suitable for automatic feeding round bottle / square bottle into carton which bottle use in pharmaceutical, cosmetic, food, health product. On line bottle unscramble and feeding, leaflet fold(1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.

Machine frame adopt super stainless steel.

Process

1.Bags storage → 2.Print code (Optional) → 3.Open bags → 4.Detection → 5.Filling into bags → 6.Close and heated-seal bags → 7.Line up bags → 8.Output

Technical Data

Application bag material	PE，PP，CPP，OPP，PET，PA（NY），VMPET、VMCPP
Packing speed	60-110bags/min
Packing accuracy	±1.5%
Bag width range	50~120mm
Bag height range	70~350mm
Air consumption	0.6m3/min
Working pressure	0.6Mpa
Maximum packing weight	300g
Power supply	4kw，220V、380V、450V
Machine weight	1800kg
Machine dimension (L×w×H)	3100mm×1320mm×1400mm
Rack material	304 stainless steel shell, the body is plastic coated carbon steel
Core elemen	Pneumatic Element：Japan SMC
Core elemen	Electrical Element：Japan Omron PLC、Variable-frequency Drive、Touch screen

Structure about every assembly unit

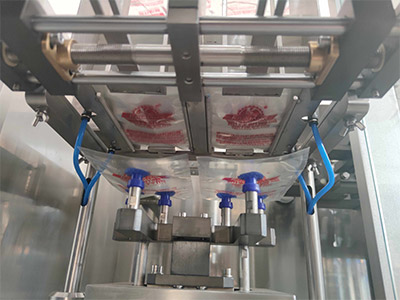

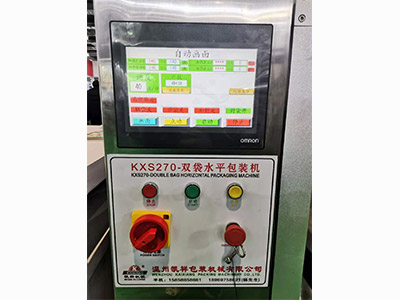

Omron Touch Screen convenient to operate	Double bags, double efficiency	Double line filling artistically

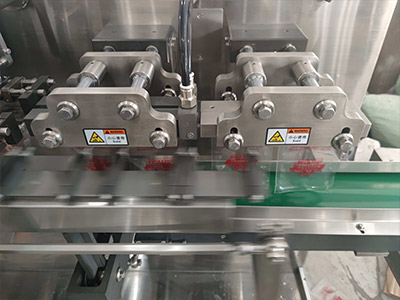

Close and tighten the bags to make the seal		Preheat and heat seal total two processes to make the seal pretty hermetic and artistically

Preheat and heat seal total two processes to make the seal pretty hermetic and artistically
