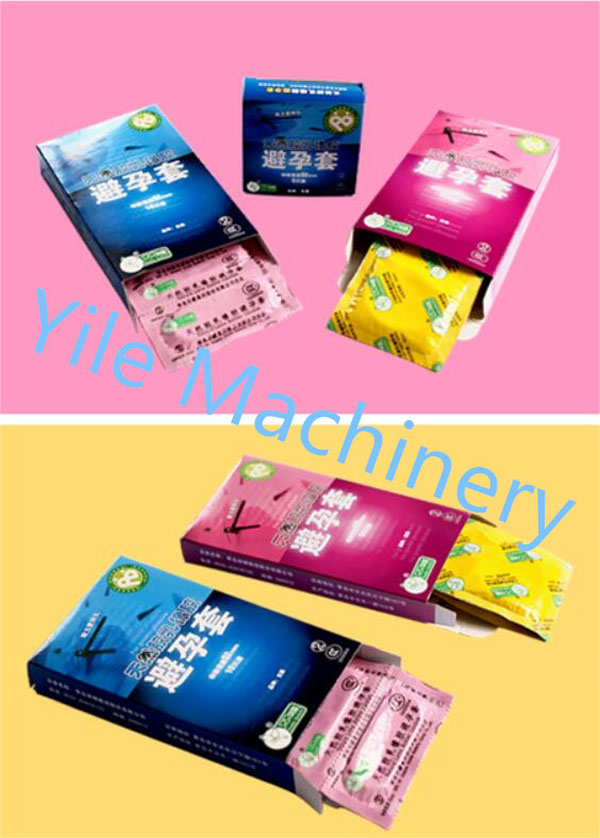

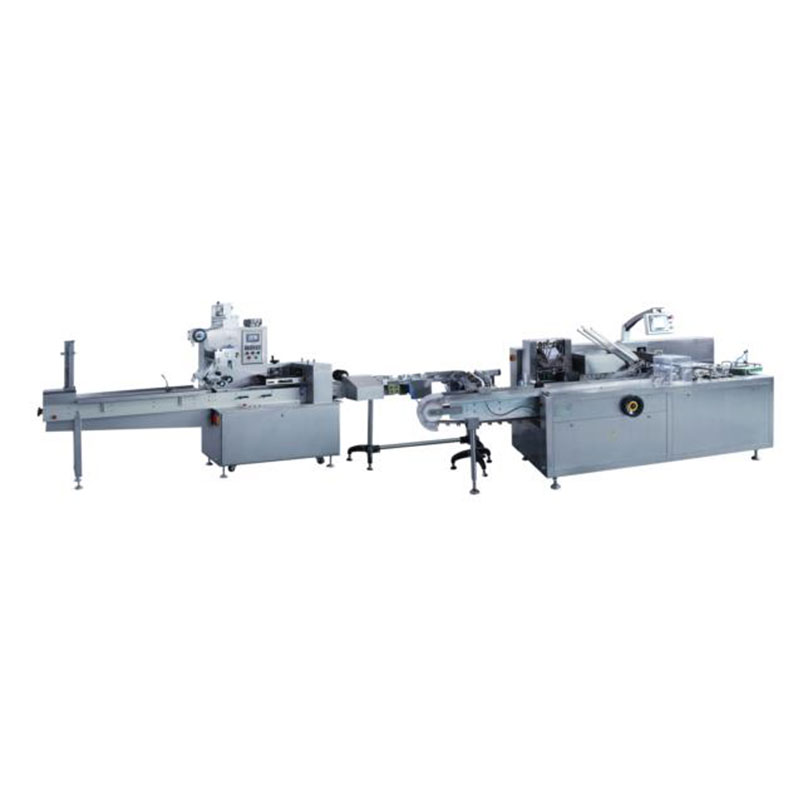

1. YL-120 Condom Cartoning Machine for 3pcs single condom or 12pcs condoms

Instruction

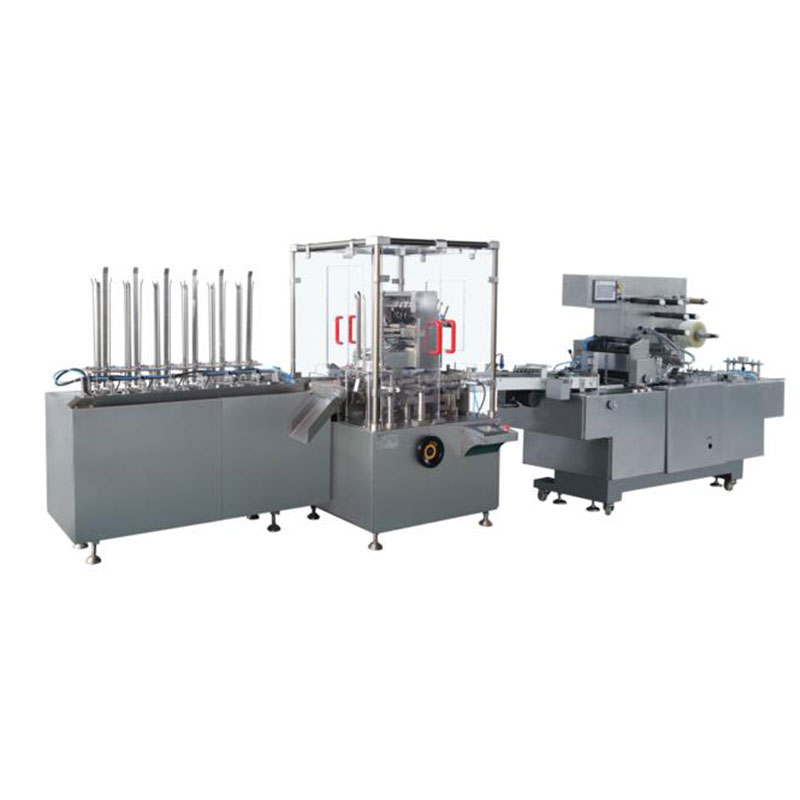

Cartoner-Overwrapper Machine is suitable for condom into carton, such as three condoms or 12pcs condoms into carton and sealing carton by tuck-in or with glue. The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and forming, products and leaflet insert into carton, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with label machine, tube sealing and filling Machine, blister packing machine, shrink machine, overwrapping machine, bundling machine and case packer to form a production line.

Feature

1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2. Adopt human-machine operation system.

3. Automatically displaying device for trouble, speed and finished products counting.

4. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

5. No products not suction leaflet, no leaflet not suction carton.

6. Automatic detection and rejection device for lacking blister goods and leaflets.

7. Protecting automatically for overloading.

8. stable performance , operation is easy.

Main technical parameters

Encasing speed		30-100 boxes/min
Box	Quality requirement	250-350g/m2
	Dimension range (L×W×H)	(65-125)mm×(35-85)mm×(13-50)mm
	Quality requirement	60-70g/m2
Leaflet	Unfolded leaflet specification( L×W)	(80-250)mm×(90-170)mm
Leaflet	Fold range	(1-4) fold
Compressed air	Working pressure	≥0.6mpa
Compressed air	Air consumption	120-160L/min
Power		220V/50Hz
Motor power		0.75kw
Machine dimension(L×W×H)		2700mm×1140mm×1800mm
Machine weight		1200kg

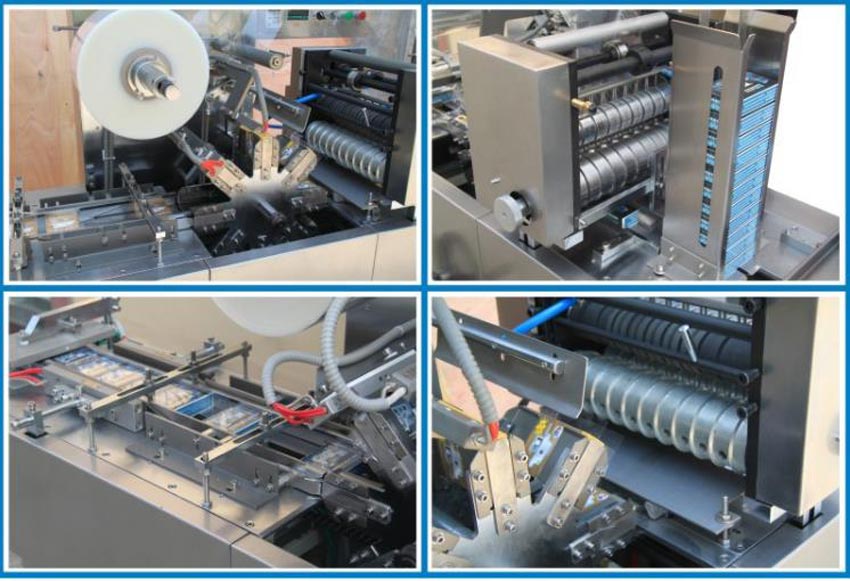

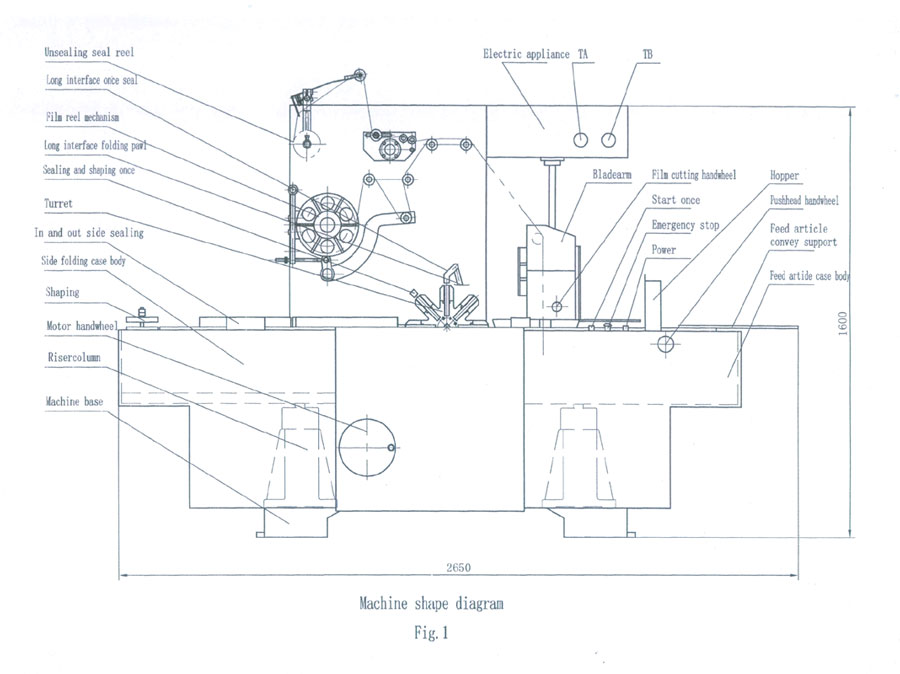

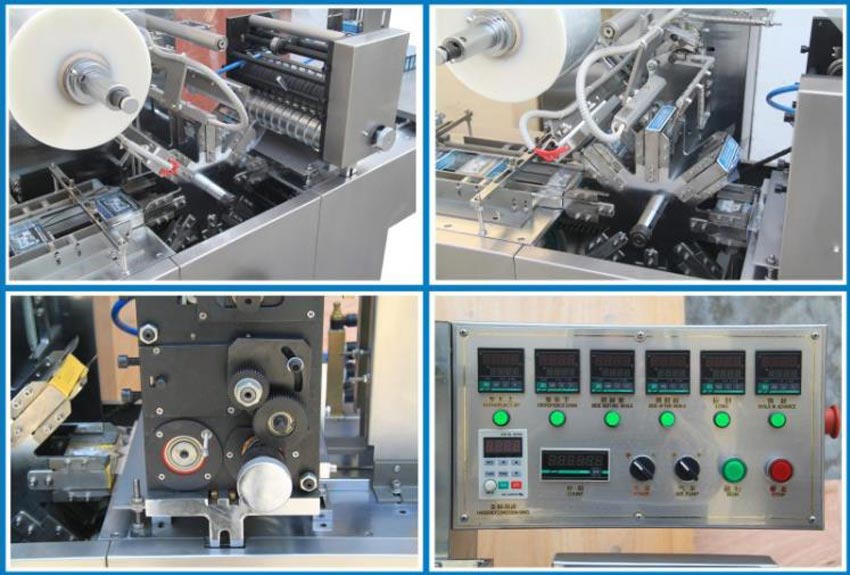

2.Cellophane Wrapping Machine

Instruction

Automatic Cellophane Wrapping Machine, which is mainly applied to the outside decoration packaging of square-shaped box-packaged things of such industries as medicine, food, daily chemistry, cosmetics, video products rubbers, IT etc. For example, the medical box, chewing gum, healthy products, tea-leaf, cubic sugar, condom, eraser, mosquito-repellent incense, cigarette, tape, VCD (CD)disk, poker, soap, square-shaped battery and floppy disk etc. It has the function of anti-moisture and anti-falsification, and also enhances the product level and additional value. It can combine the box-packaged machine and code-spraying machine to manufacture.

Technical Data

Main technical parameters
Package material	BOPP film and gold tear tape
Speed	60packs/min
Product size mm	906020m
Power of supply	AC220V 50Hz, 6.5Kw (single phase)
Weight	600kg
Power consumption in KW	5kw
Outline dimensions (Lx W x H)	(L)3000×(W)800×(H)1500mm
Control system	Button control

Functions and Options

1. No need to regulate the height of two work tops of the machine when the mold is replaced, no need to assemble or dismantle the material discharge chains and discharge hopper. Reduce the replacement time of the mold four hours to the present 30 minutes.

2. New-type double safeguard mechanisms are used; hence other spare parts will not be damaged when the machine runs out of step without the stop of the machine.

3. Original unilateral hand swing device to prevent from shaking the machine adversely and the non-rotation of the hand wheel during the running of the machine can secure the security of the operator.

4. New-type double-rotary film cutting cutter can ensure no need to mill the blade during many-year use of the machine, which overcomes the defect that the traditional stationary single-rotary film cutting cutter was easily worn.
