YL-160 Automatic High Speed Cartoning Machine For Bottle

Features

Encasing speed: 50-130 boxes/min

Working pressure: ≥0.6mpa

Air consumption: 20m3/h

Power: 380V/50Hz

Motor power: 1.5kw

Machine weight: 1300kg

Get a Quote PDF Datasheet
Share:
YL-160 Automatic High Speed Cartoning Machine For Bottle
YL-160 Automatic High Speed Cartoning Machine For Bottle
Instruction

YL-160 Automatic High Speed Cartoning Machine can suitable for bottle(glass/flat),vial into carton. The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and forming, products and leaflet insert into carton, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with label machine, tube sealing andfilling Machine, blister packing machine, shrink machine, overwrapping machine, bundling machine and case packer to form a production line.



Feature

1.International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2.Adopt human-machine operation system.

3.Automatically displaying device for trouble, speed and finished products counting.

4.Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

5.No products not suction leaflet, no leaflet not suction carton .

6.Automatic detection and rejection device for lacking blister goods and leaflets.

7.Protecting automatically for overloading.

8.Stable performance , operation is easy.



Main technical parameters

Encasing speed

50-130 boxes/min

Box

Quality requirement

250-350g/m2

Dimension range(L×W×H)

(55-200)mm×(25-85)mm×(12-70)mm

Quality requirement

60-70g/m2

Leaflet

Unfolded leaflet specification(L×W)

(100-220)mm×(100-180)mm

Fold range

(1-4) fold

Compressed air

Working pressure

≥0.6mpa

Air consumption

20m3/h

Power

380V/50Hz

Motor power

1.5kw

Machine dimension(L×W×H)

3500mm×1320mm×1700mm

Machine weight

1300kg

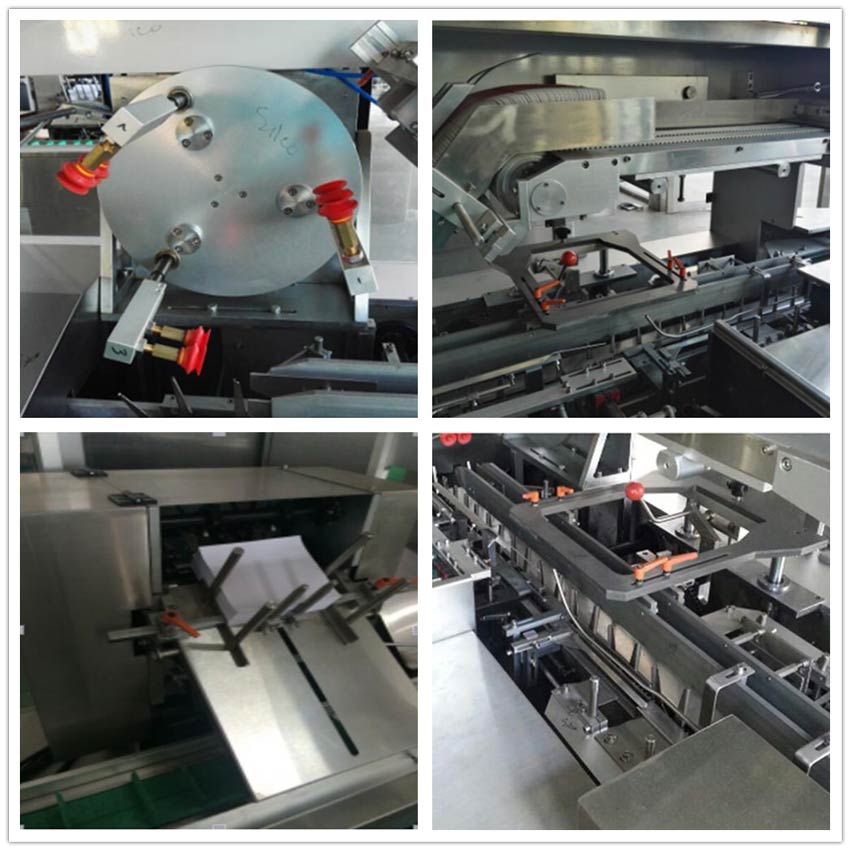

Machine Picture



Sample Picture
