Instruction

YL-60B Automatic Vertical Cartoning Machine is able to encase irregular bulk items that horizontal cartoning machine can not do. The cartoning machine is applicable for coffee capsules, wash powder, chocolate, pet food, penicillin bottle, perfume bottle, etc.

YL-60B Automatic Vertical Cartoning Machine which is top load product ,carton errect and feeding product from top by manual ,then carton sealing by glue or tuck-in.

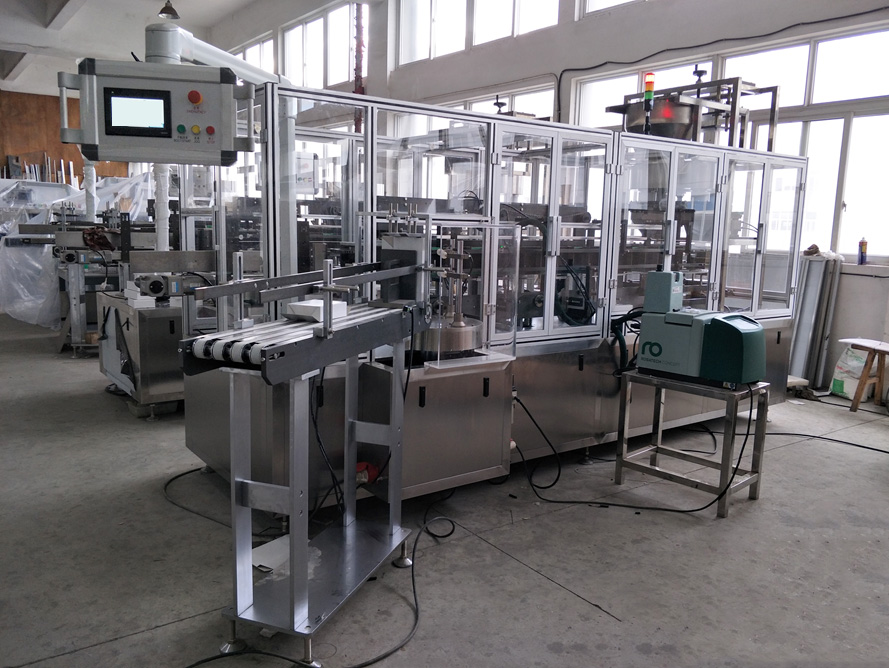

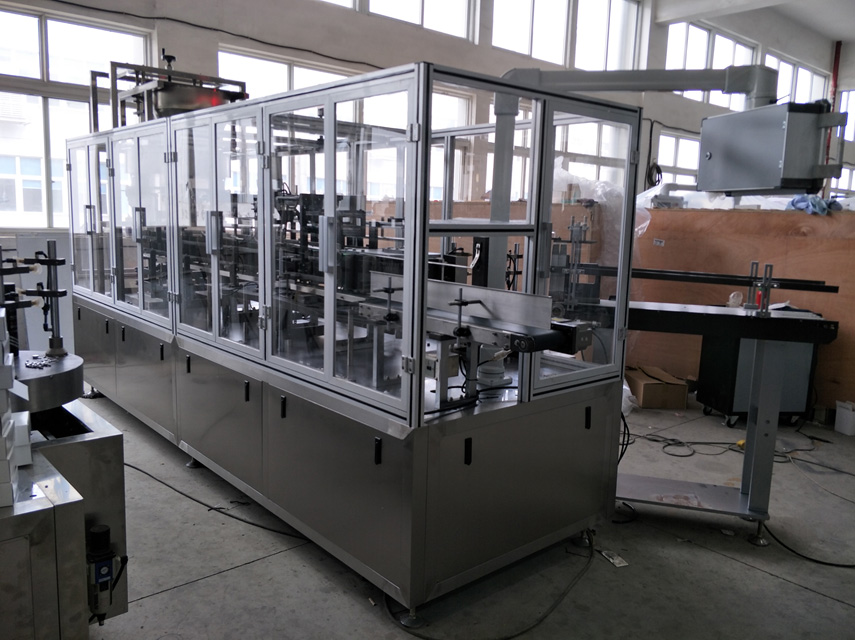

YL-60 Vertical Intermittent Cartoning Machine

Working Process

【Station 1】 carton forming
【Station 2】 carton transport
【Station 3】carton bottom sealing by glue
【Station 4】 weigher and Filling
There is an opening detection device insert into the open carton
【Station 5】Carton bottom flap Sealing by glue
【Station 6】finished carton transport out

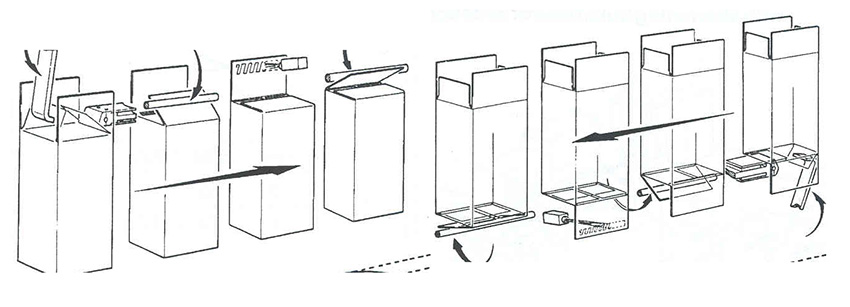

YL-60 Vertical Intermittent Cartoning Machine Working Process

Sensors

Carton present detection sensor

Main Technical Parameters

Encasing speed		40-50boxes/min
Box	Quality requirement	250-450g/m2
	Dimension range L×W×H	(100-250)mm×(80-160)mm×(25-75)mm
Compressed air	Working pressure	≥0.6mpa
	Air consumption	20m3/h
Power		380V/50Hz
Motor power		1.5kw
Machine dimension(L×W×H)		4700mm×2200mm×2100mm
Machine weight		1400kg

Design Drawing

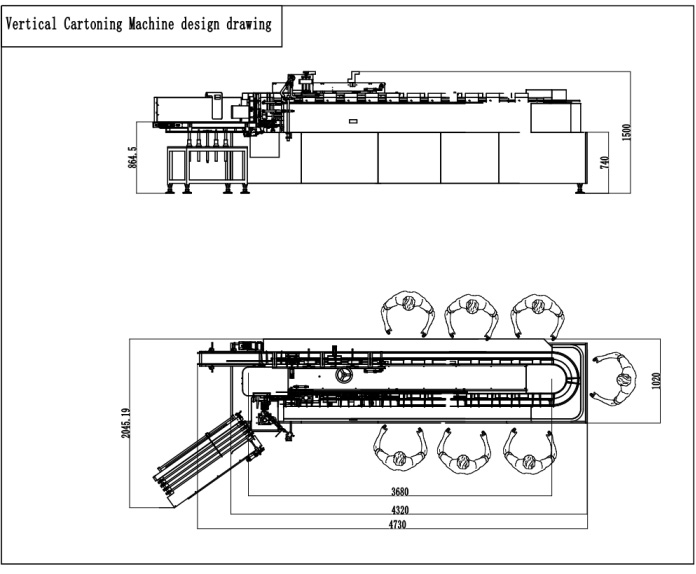

Vertical Cartoning Machine Design Drawing

Structure About Every Assembly Unit

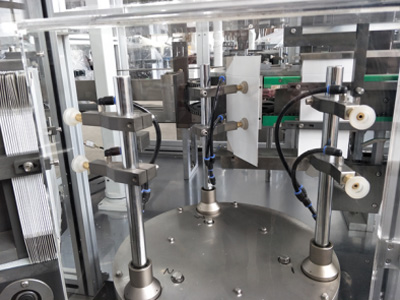

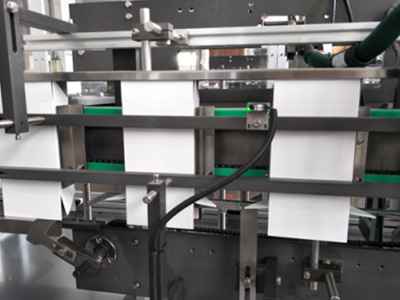

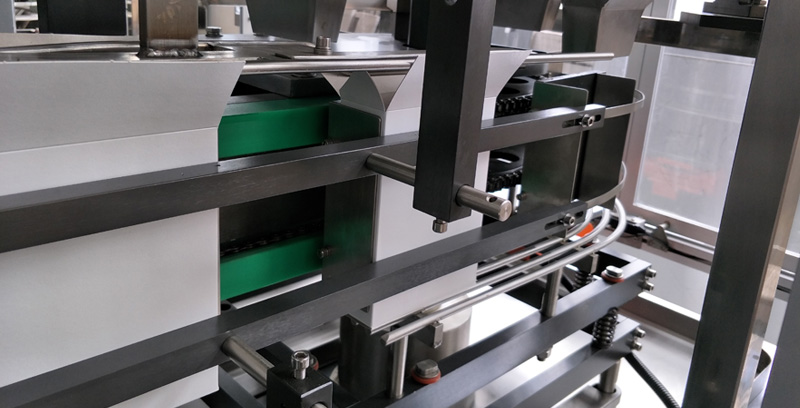

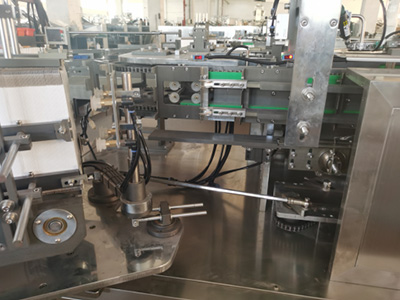

Carton transport and many feeding product position	Big empty boxes storage, the machine could open the boxes continuously working.	Carton transport and bottom flap sealing by glue

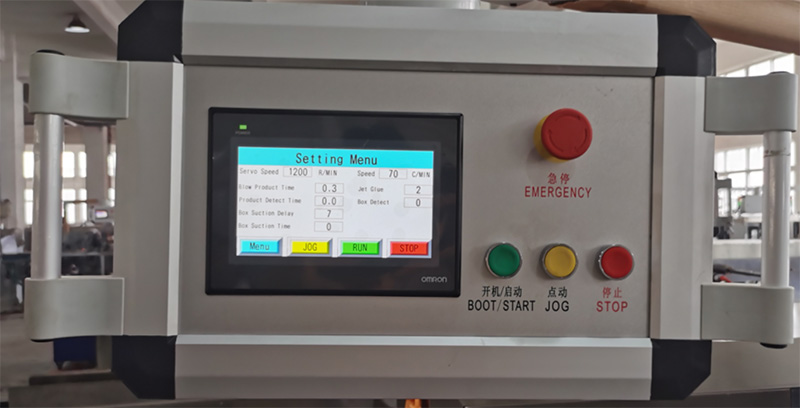

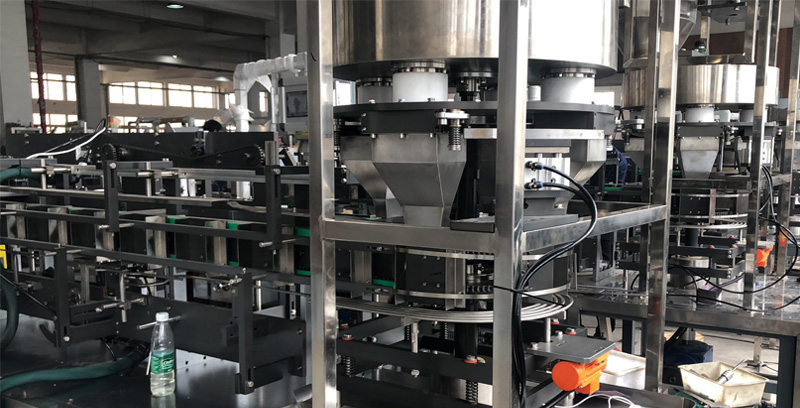

1.Touch screen, PLC control system and man-machine interface display all adopt international famous brand.	Carton transport and bottom flap sealing by glue	Weigher for different product ,choose different weigher

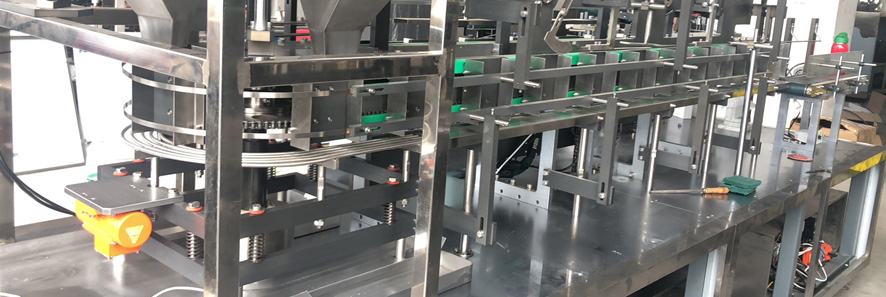

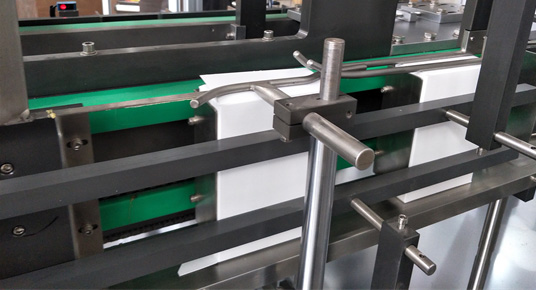

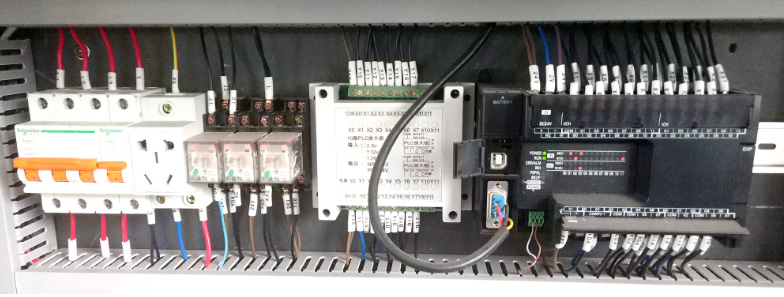

Carton vertical stacking hopper	Electrical connect	Close Box automatically, Finish product Output
