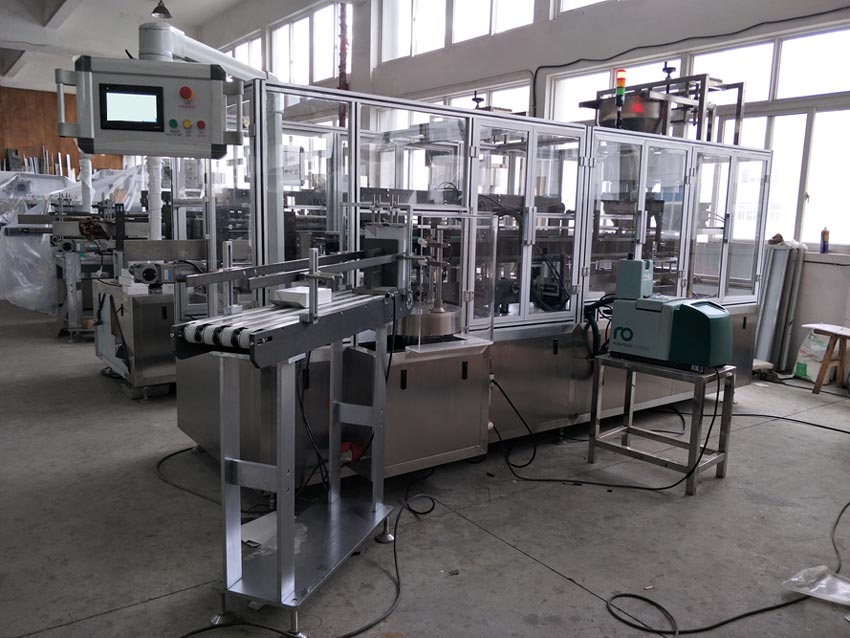

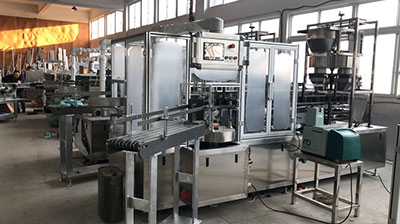

YL-80 Vertical Cartoning Machine

Instruction

YL-80 Vertical Cartoning Machine produced by Yile Machinery has a high degree of automation and can be applied to a variety of different packaging needs. It has a beautiful appearance and can meet the needs of customers in medicine, food, cosmetics or other industries.

YL-80 vertical cartoning machine is applicable for coffee capsules, wash powder, chocolate, pet food, penicillin bottle, perfume bottle, etc. This cartoning machine is able to encase irregular bulk items that horizontal cartoning machine can not do.

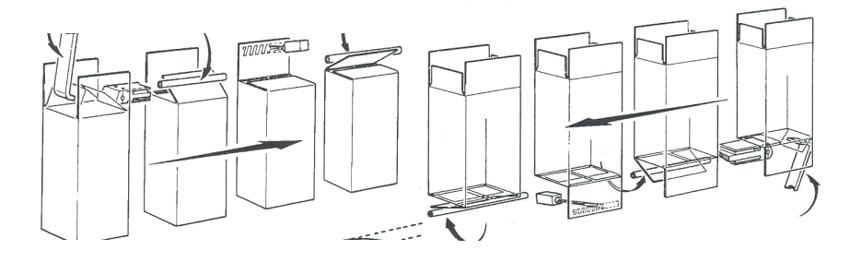

Working Process

Technical Data

Weight & Dimensions

Output & Speed

Carton

Utilities

Functions and Options

The cartoning machine includes an automatic station to form the cartons. The carton boxes are held by vacuum.

Product will be manually loaded on conveyer by manual, then other things finished automatically.

Automatically displaying device for trouble, speed and finished products counting

Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return

Adopt human-machine operation system.

International famous brand of electric components such for PLC touch screen, frequency inverters, etc

Stable performance, operation is easy Controls

Sensors

Carton present detection sensor

Structure about every assembly unit

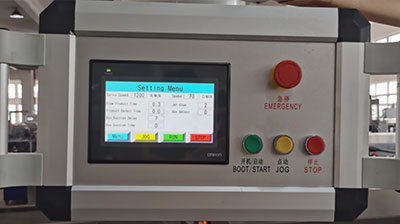

Touch screen, PLC control system and man-machine interface display all adopt international famous brand.	Big empty boxes storage,  the machine could open the boxes continuously working.	Big area for feeding different kinds of products

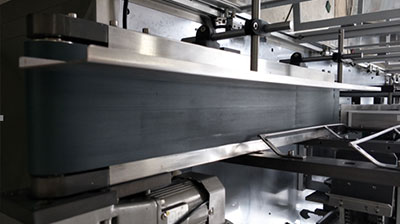

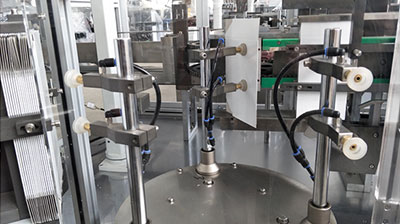

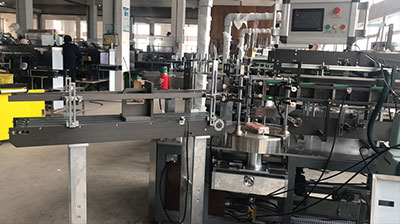

Feeding- rotary by manual	Close Box automatically	Finish product Output

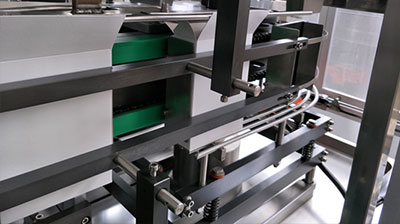

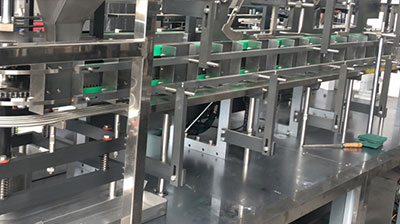

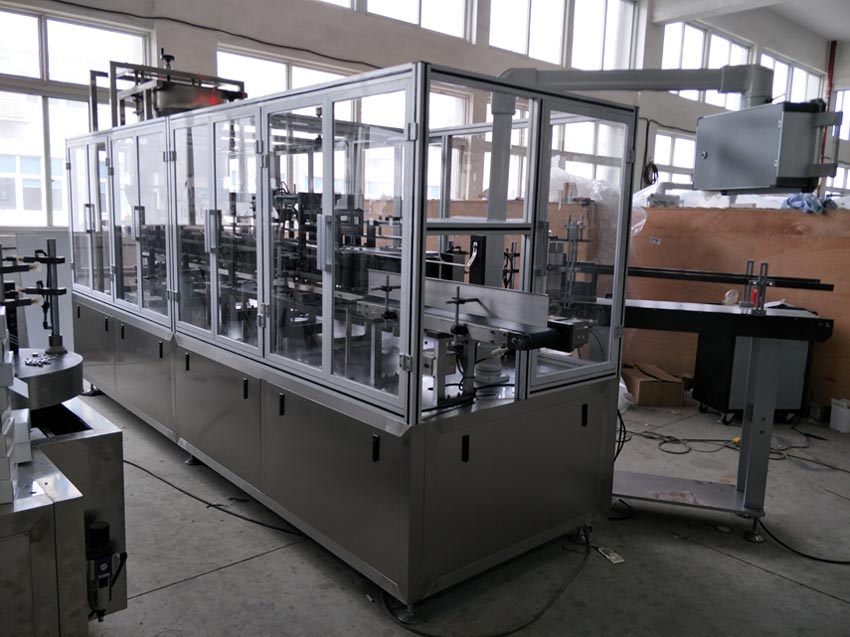

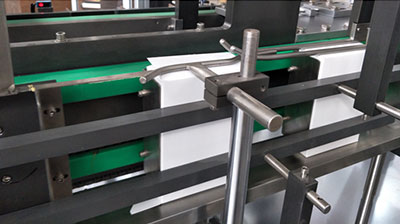

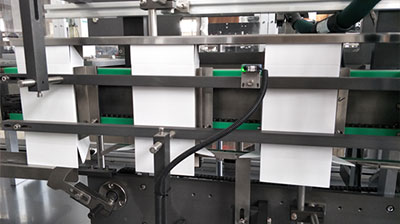

Adopt safety protective cover, the whole machine is designed accord to CE certification.	Carton vertical stacking hopper	Carton transport and many feeding product position

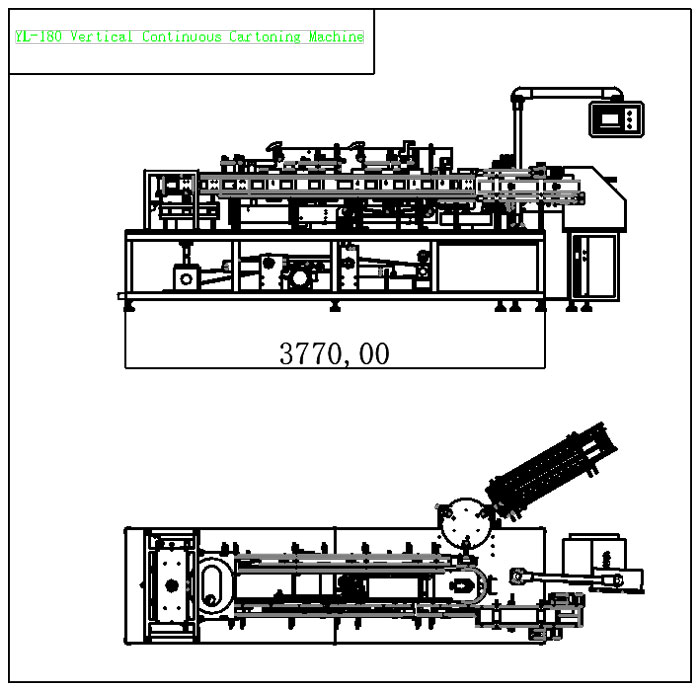

Machine Design Drawing

Hot melt glue machine

Technical Data
